PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247DA-3 60.00mm

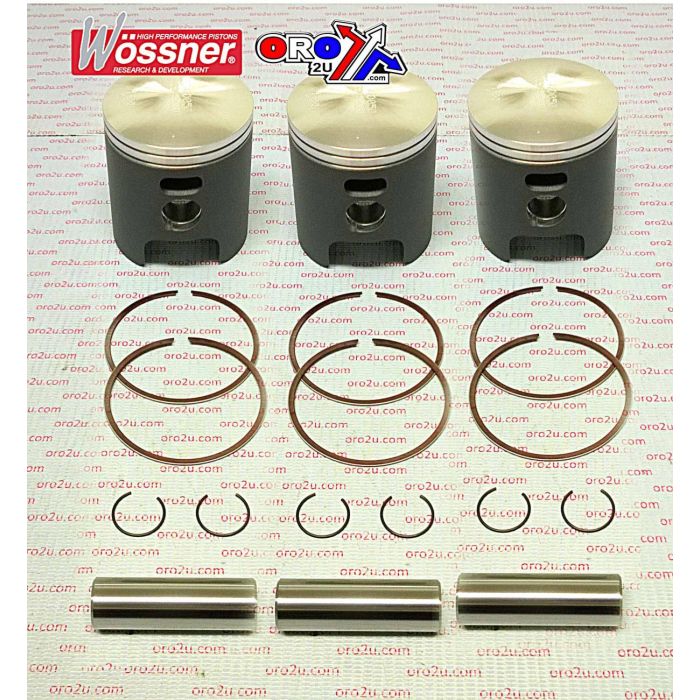

The Wossner K8247DA-3 piston kit is a standard-size forged piston set designed for Kawasaki triple-cylinder 500cc models produced between 1969 and 1976. With a 60.00mm bore and precision-engineered construction, this kit ensures reliable performance and effective heat management in two-stroke engine configurations. Manufactured in Germany, the kit includes three pistons along with essential components for installation.

Features

• Forged high-performance pistons with skirt coating

• Elliptical design ensures uniform thermal expansion and load distribution

• Optimised combustion chamber heat transfer to cylinder walls

• Designed for two-stroke engines

• Includes piston pins, clips, and rings

Specifications

• Bore size: 60.00mm (Standard)

• Measured bore: 59.93mm

• Display displacement: 498 cm³

• Stroke: 58.80mm

• Clearance: 0.07mm

• Compression height: 31.90mm

• Dome volume: Not specified

• Theoretical weight: 177g

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Quantity: 3 pistons per kit

• Made in Germany

Cross-Reference OEM Part Numbers

• Part No. 56-W9867.00A.WO

• Clip: CW16

• Piston Pin: WP041

• Ring Set: RSB6100 x 2 per piston

Vehicle Fitments

• Kawasaki 500S 1969–1976

• Kawasaki 500 H1 1969–1976

• Kawasaki 500 KH 1969–1976

• Triple Cylinder Models
