PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247D050-3 60.50mm

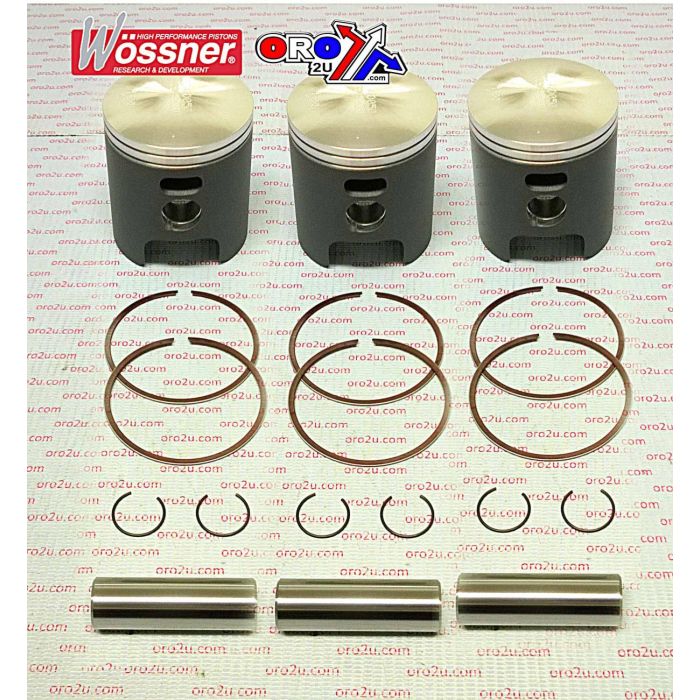

The Wossner K8247D050-3 piston kit is a +0.50mm oversize forged piston set for Kawasaki triple-cylinder 500cc motorcycles produced from 1969 to 1976. With a 60.50mm bore and two-stroke configuration, these pistons are engineered for reliable performance and optimal thermal efficiency. Manufactured in Germany, this kit includes three pistons and necessary installation components.

Features

• Forged high-performance pistons with skirt coating

• Elliptical design ensures even heat expansion and load distribution

• Optimised for efficient heat transfer from combustion chamber to cylinder walls

• Designed for two-stroke engine operation

• Includes piston pins, clips, and rings

Specifications

• Bore size: 60.50mm (+0.50mm oversize)

• Measured bore: 60.43mm

• Display displacement: 498 cm³

• Stroke: 58.80mm

• Clearance: 0.07mm

• Compression height: 31.90mm

• Theoretical weight: 177g

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Quantity: 3 pistons per kit

• Made in Germany

Cross-Reference OEM Part Numbers

• Part No. 56-W9867.050.WO

• Clip: CW16

• Piston Pin: WP041

• Ring Set: RSB6050 x 2 per piston

Vehicle Fitments

• Kawasaki 500S 1969–1976

• Kawasaki 500 H1 1969–1976

• Kawasaki 500 KH 1969–1976

• Triple Cylinder Models
