PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247D100-3 61.00mm

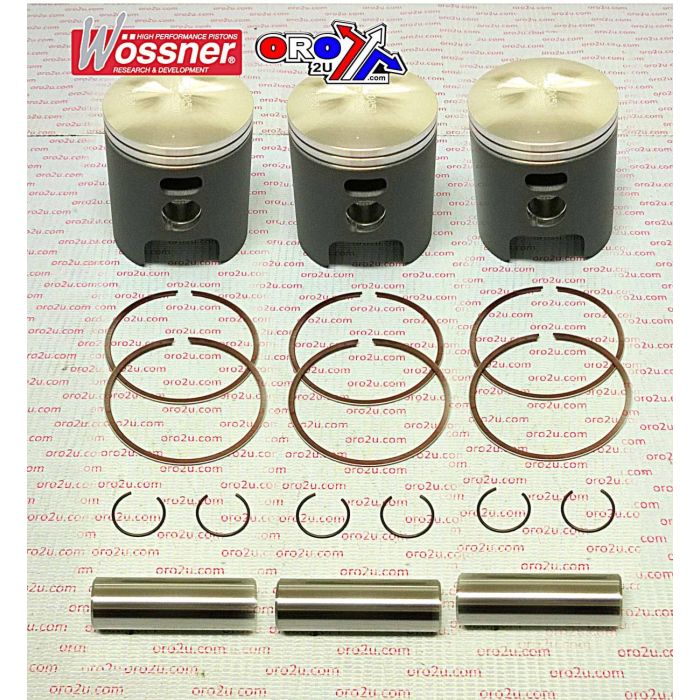

The Wossner K8247D100-3 piston kit is a +1.00mm oversize forged piston set designed for Kawasaki 500cc triple-cylinder motorcycles produced between 1969 and 1976. With a 61.00mm bore and engineered for two-stroke engines, this kit ensures durability, efficient thermal performance, and consistent operation under demanding conditions. Manufactured in Germany, the set includes three pistons with all required components for installation.

Features

• Forged high-performance pistons with skirt coating

• Elliptical design for uniform heat expansion and load distribution

• Optimised heat transfer from combustion chamber to cylinder walls

• Designed for two-stroke engine operation

• Includes piston pins, clips, and rings

Specifications

• Bore size: 61.00mm (+1.00mm oversize)

• Measured bore: 60.93mm

• Display displacement: 498 cm³

• Stroke: 58.80mm

• Clearance: 0.07mm

• Compression height: 31.90mm

• Dome volume: Not specified

• Theoretical weight: 177g

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Quantity: 3 pistons per kit

• Made in Germany

Cross-Reference OEM Part Numbers

• Part No. 56-W9867.100.WO

• Clip: CW16

• Piston Pin: WP041

• Ring Set: RSB6100 x 2 per piston

Vehicle Fitments

• Kawasaki 500S 1969–1976

• Kawasaki 500 H1 1969–1976

• Kawasaki 500 KH 1969–1976

• Triple Cylinder Models
