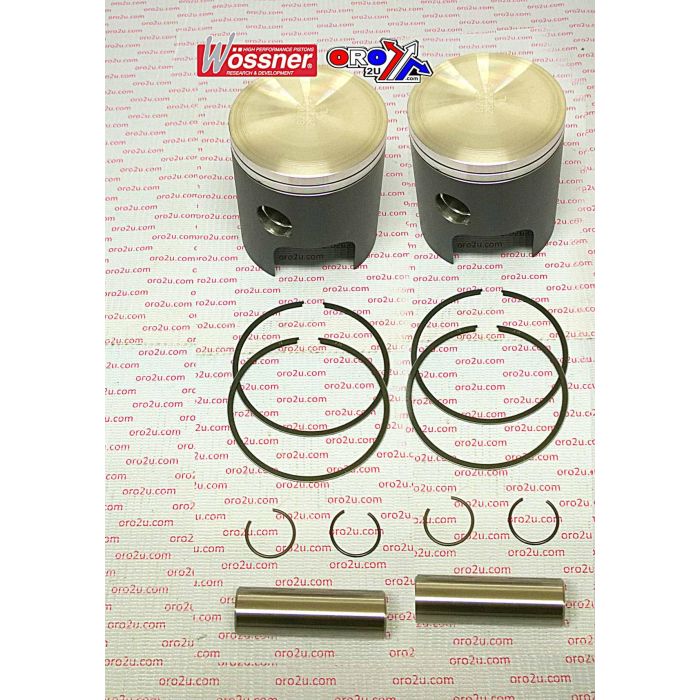

PISTON KIT SET/2 TWIN GT500, WOSSNER K8276D100-2 71.00mm

This Wossner forged piston kit K8276D100-2 features a 71.00mm bore (+1.00mm oversize) and is designed for SUZUKI TWIN T500 and GT500 twin-cylinder models from 1976 to 1977. Delivered as a set of two pistons, it is engineered for 2-stroke performance with improved thermal efficiency, durability, and structural integrity. Manufactured in Germany, this kit is precision-crafted to meet the demands of vintage engine restoration and high-performance usage.

Features

• Forged piston design provides enhanced strength and longevity in 2-stroke engines

• Engineered for optimal heat transfer from the combustion chamber to cylinder walls

• Elliptical profile supports uniform expansion and consistent load distribution

• Prevents piston collapse due to localised pressure points

• Manufactured in Germany

Specifications

• Bore: 71.00mm (+1.00mm oversize)

• Piston code: Wossner K8276D100-2

• Clip part number: CW18

• Piston pin: WP033

• Ring set: RSB7100 x 2 (also referenced as RBD7100)

• Displacement: 492 cm³

• Stroke: 64.00 mm

• Clearance: 0.09 mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Compression height: 31.80 mm

Cross-Reference OEM Part Numbers

• Part No. 56-W9886.100-2

Vehicle Fitments

• SUZUKI TWIN T500 1976–1977

• SUZUKI GT500 (Twin cylinder) 1976–1977
