PISTON KIT SET/2 TWIN GT500, WOSSNER K8276D050-2 70.50mm

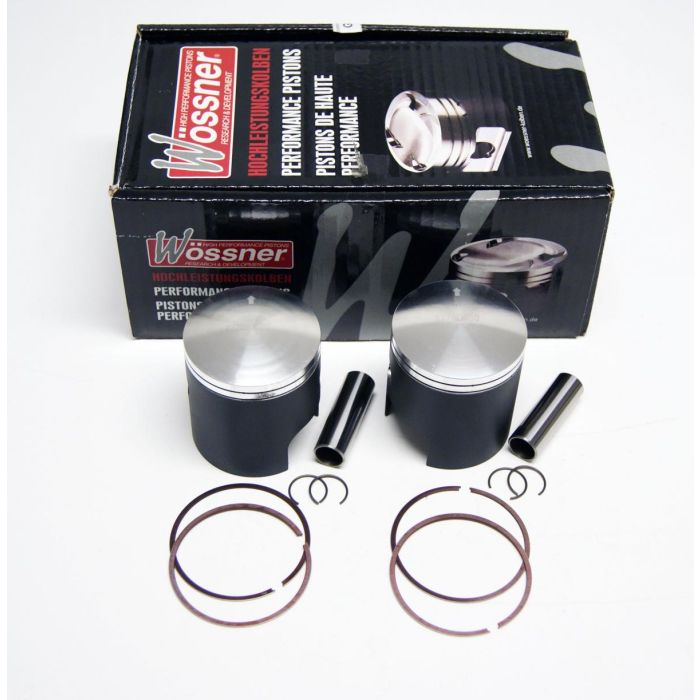

This Wossner forged piston kit K8276D050-2 features a +0.50mm oversize with a 70.50mm bore and is designed for the SUZUKI TWIN T500 / GT500 twin-cylinder models from 1976 to 1977. Supplied as a set of two pistons, it offers enhanced strength, thermal efficiency, and durability for 2-stroke applications. Precision-manufactured in Germany, the kit is engineered to maintain structural integrity under demanding operating conditions.

Features

• Forged piston construction ensures superior strength and endurance

• Optimised for effective heat transfer from combustion chamber to cylinder walls

• Elliptical shape provides uniform bearing surface under heat expansion

• Distributes thrust loads evenly to reduce localised stress and prevent collapse

• Made in Germany

Specifications

• Bore: 70.50mm (+0.50mm oversize)

• Piston code: Wossner K8276D050-2

• Clip part number: CW18

• Piston pin: WP033

• Ring set: RSB7050 x 4

Cross-Reference OEM Part Numbers

• Part No. 56-W9886.050-2

Vehicle Fitments

• SUZUKI TWIN T500 1976–1977

• SUZUKI GT500 (Twin cylinder) 1976–1977
