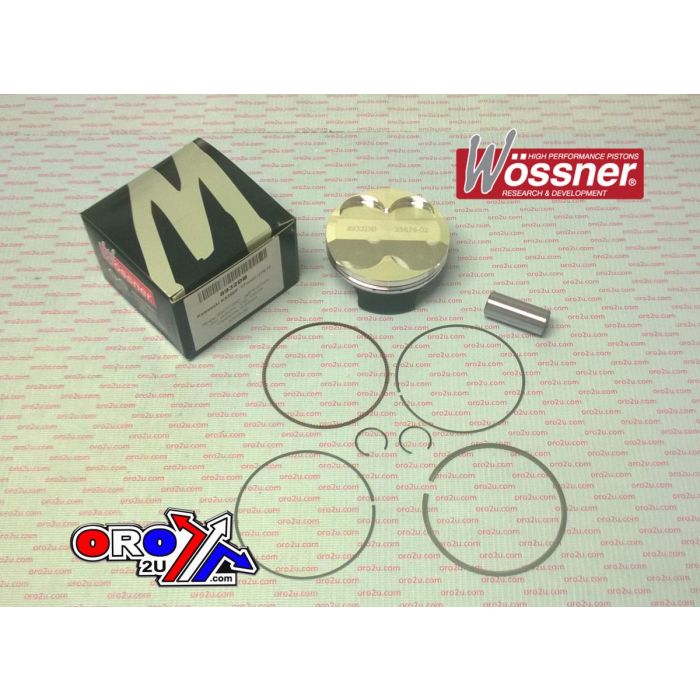

PISTON KIT KXF250 2017 77mm B, WOSSNER 8932DB COMP 14:1

The Wossner 8932DB piston kit is a forged performance component with a 77.00mm standard bore and a 76.97mm diameter, offering a +0.01mm sizing option. Specifically engineered for Kawasaki KXF250 engines, this piston delivers superior durability and heat management under demanding conditions. Manufactured in Germany, it features an elliptical profile to optimise expansion and load distribution.

Features

• Forged piston design for increased strength and thermal resilience

• Efficient heat transfer from combustion chamber to cylinder walls

• Elliptical geometry ensures balanced load distribution and reduces localized stress

• Includes piston, ring set (RIK77.00D), pin (WP070), and circlips (CW16)

Specifications

• Bore: 77.00mm (STD)

• Diameter: 76.97mm

• Sizing: B (+0.01mm)

• Wossner Part Number: 8932DB

• Kit Part Number: 56-W9952.B.WO

• Made in Germany

Cross-Reference OEM Part Numbers

• PISTON-ENGINEV: 13001-0785

• PIN-PISTON: 13002-0048

• RING-SET-PISTON: 13008-0028

• RING-SNAP, PISTON PIN: 92033-1161

• RIK77.00D

• WP070

• CW16

Vehicle Fitments

• Kawasaki KXF250 2017 - 2018

• Kawasaki KX250F 2017
