PISTON KIT KXF250 2017 77mm A, WOSSNER 8932DA COMP 14:1 13001-0793

The Wossner 8932DA piston kit is a forged standard bore performance piston designed for Kawasaki KXF250 models. Featuring a 77.00mm bore and a 76.96mm measured diameter, this piston delivers high durability and thermal efficiency. Manufactured in Germany, it is engineered for uniform expansion and thrust load distribution, enhancing reliability under high-performance conditions.

Features

• Forged piston construction for enhanced durability and strength

• Designed for optimal heat transfer from the combustion chamber to cylinder walls

• Elliptical shape allows uniform expansion, reducing stress and preventing collapse

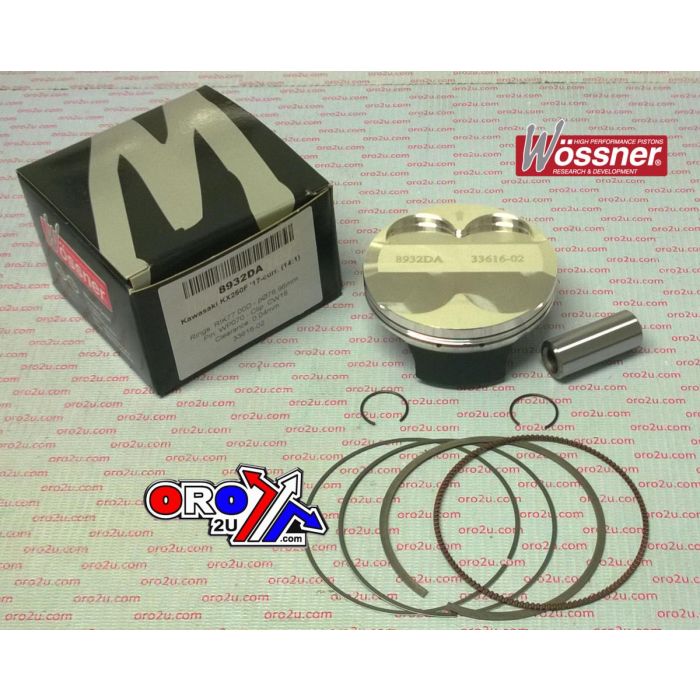

• Includes piston, ring set (RIK77.00D), pin (WP070), and circlips (CW16)

Specifications

• Bore: 77.00mm (STD)

• Diameter: 76.96mm

• Wossner Part Number: 8932DA

• Kit Part Number: 56-W9952.A.WO

• Made in Germany

Cross-Reference OEM Part Numbers

• PISTON-ENGINEV: 13001-0785

• PIN-PISTON: 13002-0048

• RING-SET-PISTON: 13008-0028

• RING-SNAP, PISTON PIN: 92033-1161

• RIK77.00D

• WP070

• CW16

• 13001-0793

• 40124M07700

Vehicle Fitments

• Kawasaki KXF250 2017 - 2018

• Kawasaki KX250F 2017
