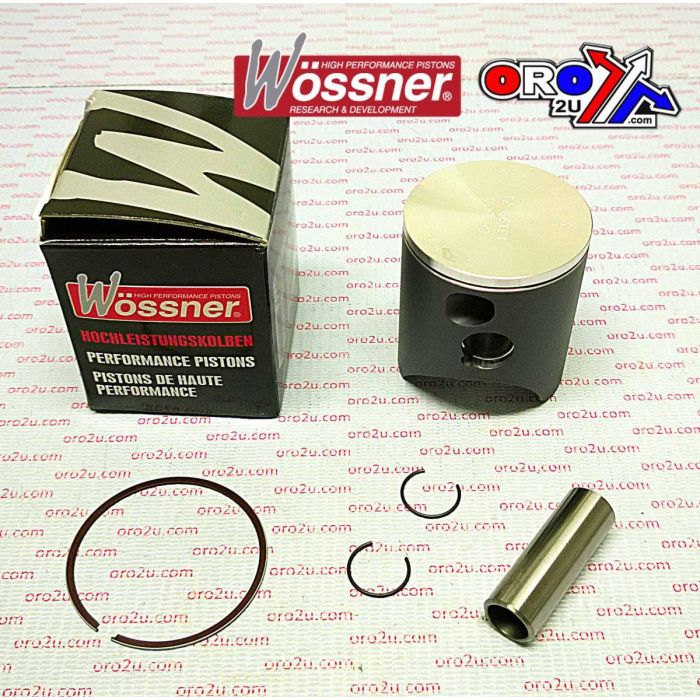

PISTON KIT HONDA CR125 92-99 54.00, WOSSNER 8020DD, FORGED

Piston Kit 54.03mm Bore 53.98 Wossner 8020DD (+0.03)

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localised pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Lock P/N: CW15
• Pin P/N: WP032
• Ring Set P/N: RSB5400
• Rod P/N: P2009

Specifications:

• Display (cm3): 125
• Hub Stroke (mm): 54.50
• Clearance (mm): 0.05
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3):
• Compression Height (mm): 28.00
• Theoretical Weight (G):

Cross Reference Numbers (ONLY):

• 13110-KZ4-505
• 09104723
• 676M05400
• 8089DA
• 800099749/3
• 09104812
• 760M05400

Fitment:

HONDA CR125 1992 - 1999,
