PISTON KIT HONDA CR125 92-99 54.00, WOSSNER 8020DA,FORGED

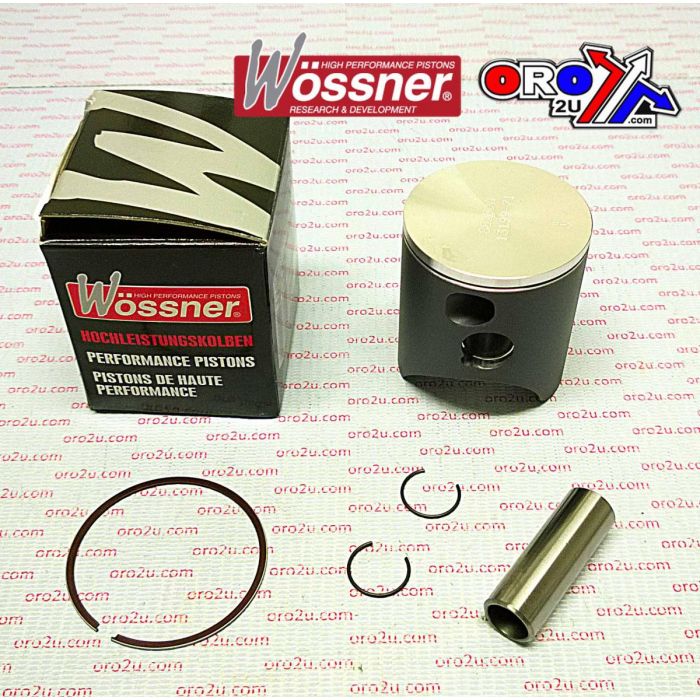

Wossner Forged Piston Kit 54.00mm Bore – Honda CR125 (1992–1999)
This Wossner forged piston kit is designed for Honda CR125 models from 1992 to 1999, With a standard bore of 54.00 mm and a piston diameter of 53.95 mm, this piston provides high structural strength and superior thermal efficiency for 2-stroke engines. Its elliptical design ensures even load distribution under thermal expansion, reducing stress and wear. Manufactured in Germany to precise specifications.

Features

• Forged piston design for enhanced strength and reliability
• Engineered to optimise combustion heat transfer to cylinder walls
• Elliptical profile distributes thrust loads evenly and minimises pressure points
• Precision-manufactured in Germany

Specifications

• Bore Size: 54.00 mm
• Piston Diameter: 53.95 mm
• Engine Displacement: 125 cm³
• Stroke: 54.50 mm
• Clearance: 0.05 mm
• Compression Height: 28.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM and Equivalent Part Numbers

• 13110-KZ4-505
• 09104723
• 676M05400
• 8089DA
• 800099749/3
• 09104812
• 760M05400

Cross-Reference Wossner Part Numbers

• Piston Kit: 8020DA
• Lock: CW15
• Pin: WP032
• Ring Set: RSB5400
• Rod: P2009

Vehicle Fitments

• Honda CR125 (1992–1999)
