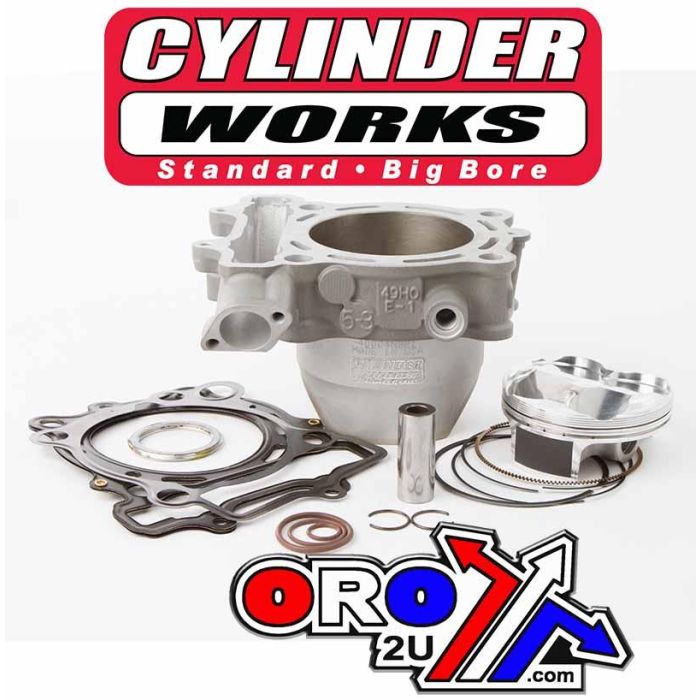

CYLINDER KIT 13-15 RM-Z250 77, WORKS 40004-K02 STD, WITH VERTEX PISTON KIT

Cylinder Works Standard Bore Cylinder Kit for the 2013-2015 Suzuki RM-Z250 is a ready-to-install, direct bolt-on replacement requiring no re-plating. Designed to match OEM specifications, this kit includes a matched Vertex piston for longevity, performance, and reduced engine noise.

Features

• Direct bolt-on replacement with no re-plating required
• Nickel Silicon Carbide plated for extended lifespan
• Three options available: Standard Bore, Standard Bore High Compression, and Big Bore
• Includes cylinder, piston, rings, pin, clips, and top-end gasket set
• Big bore cylinders do not require additional machine work (unless specified)
• Replacement Vertex piston, rings, clips, and pins available separately
• Manufactured in the U.S.A.

Included Items

• Aluminum cylinder
• Vertex piston
• Piston pin
• Two circlips
• Top ring
• Two oil rings
• Oil ring spacer

Top-end gasket set, including:

• Base gasket
• Head gasket
• Four valve stem seals
• Exhaust gasket
• Overflow seal
• Three O-rings

Specifications

• Standard bore size

Cross-Reference OEM Part Numbers

• Not specified

Vehicle Fitments

• 2013 Suzuki RM-Z250
• 2014 Suzuki RM-Z250
• 2015 Suzuki RM-Z250
