CYLINDER FULL KIT 83mm 10-18 SUZUKI RM-Z 250 ATHENA 290CC BIG BORE PISTON INCLUDED P400510100020

ATHENA Big Bore Cylinder Kit Ø 83 mm, 290 cc - P400510100020 (Includes Piston)

Athena has invested consistently in aftermarket cylinder replacement parts for over a decade, enhancing both production and performance. All cylinders are meticulously engineered in Italy by Athena’s R&D Department, leveraging extensive internal expertise and state-of-the-art tools for design and testing. Coated with motor-nicksil, a nickel-silicon formulation developed by Athena, these cylinders boast smoothness and optimal wear resistance.

Athena’s cylinder kits and components enjoy global recognition for their performance, durability, and reliability. The Big Bore Cylinder Kits from Athena ensure performance gains observable across the power curve while maintaining reliability comparable to original components.

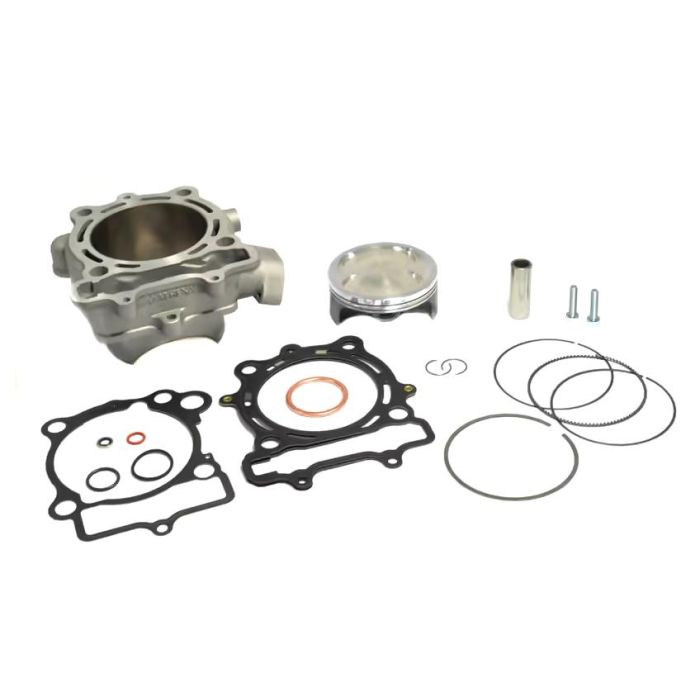

This kit comprises a high-quality aluminium cylinder with an increased bore, a complete piston including the piston pin and rings, along with all necessary gaskets. Each kit component is engineered to withstand extreme temperatures, pressures, and stresses, validated through rigorous bench and road tests by Athena technicians.

Installation of this cylinder kit requires no modifications to the engine crankcase.

CAUTION! All Athena products must be used in compliance with specific national regulations of the member state where marketed or sold. Athena disclaims responsibility for any improper use.

Technical Features:

• Bore Diameter (mm): 83.00
• Compression Ratio: 13.6:1
• Displacement (cc): 290
• Net Weight (Kg): 1.60

Partner Cross Reference code and Optional Parts:

• S4F08300007A Piston Kit 82,95 - Rev.dome-low C
• S4F08300007B Piston Kit 82,96 - Rev.dome-low C
• P400510160018 Gaskets Kit

Compatibility:

• SUZUKI RM-Z 250 cc 2010/2018

Part No. 56-K148.83.KIT
