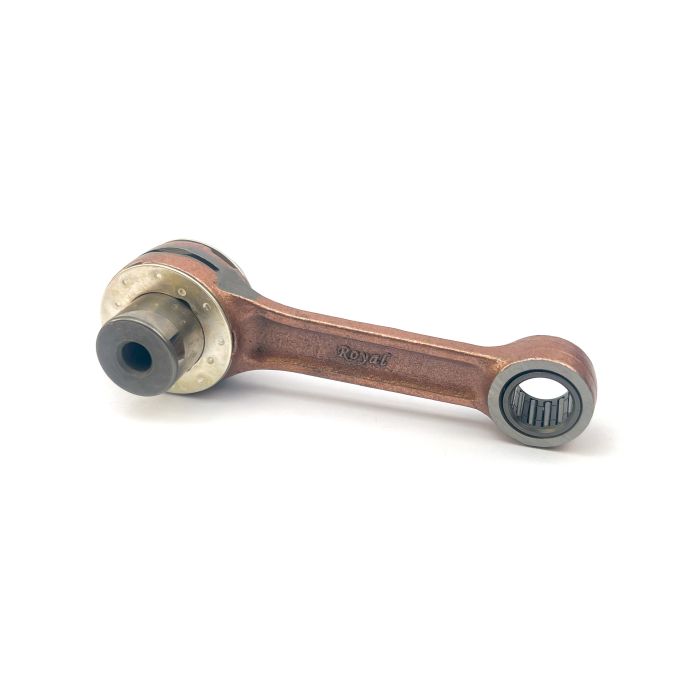

CONNECTING ROD KTM 85 03-12, PSYCHIC MX-09040 KTM SX105
SKU
56-961.DR
Retail Price
£71.94
£59.95
Trade Only: Please login or Click here to find a dealer
9 In stock
PRODUCT INFORMATION
| Brand | Psychic |
|---|---|
| Product Type | Connecting Rod |
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
VEHICLE FITMENT
DESCRIPTION
KTM
85SX 2003-2012,
105SX 2004-2011,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09040
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 96 |
| Small End Bearing | 14x18x16.8 |
| Small End Bore Ø | 18 |
| Small End Width | 13 |
| Big End Bearing | 22x28x15.8 |
| Big End Bore Ø | 28 |
| Big End Width | 16 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 46 |
| Washer Thickness | 1.00 |
Part No. 56-961.DR (oro2u.com)
Cross reference numbers ONLY.
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006, 47030015100
KTM
- 2012 KTM 85 SX 17"/14" Wheel Dia.
- 2011 KTM 85 SX 17"/14" Wheel Dia.
- 2010 KTM 85 SX 17"/14" Wheel Dia.
- 2009 KTM 85 SX 17"/14" Wheel Dia.
- 2008 KTM 85 SX 17"/14" Wheel Dia.
- 2007 KTM 85 SX 17"/14" Wheel Dia.
- 2006 KTM 85 SX 17"/14" Wheel Dia.
- 2005 KTM 85 SX 17"/14" Wheel Dia.
- 2004 KTM 85 SX 17"/14" Wheel Dia.
- 2003 KTM 85 SX 17"/14" Wheel Dia.
- 2006 KTM 85 SX 19"/16" (Wheel Dia.)
