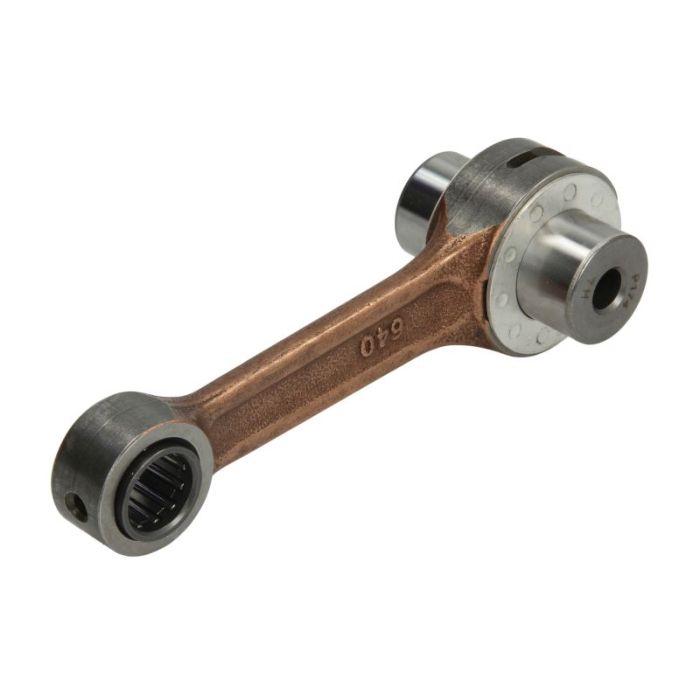

CONNECTING ROD KTM 85 03-12, HOTROD 8724 KTM SX105

Connecting rod kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This high-quality replacement kit provides exceptional strength and performance for heavy-duty use.

Features:

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
• Advanced design incorporates side scalloping and vent slots to minimize bearing race distortion at high RPM.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior durability under heavy loads.
• Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
• Thrust washers and crank pin bearings feature silver coating for added lubricity.

Specifications:

• Centre to Centre: 96.00 mm
• Big End Bore Ø: 28.00 mm
• Big End Width: Not specified
• Pin Diameter: 22.00 mm
• Pin Length: 46.10 mm
• Small End Bore Ø: 18.00 mm
• Small End Width: Not specified
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle Fitment:

• KTM 85 SX (2003–2012, 17"/14" wheel diameter)
• KTM 85 SX (2006, 19"/16" wheel diameter)
• KTM 105 SX (2004–2011)

Part Number: 56-961.HR
