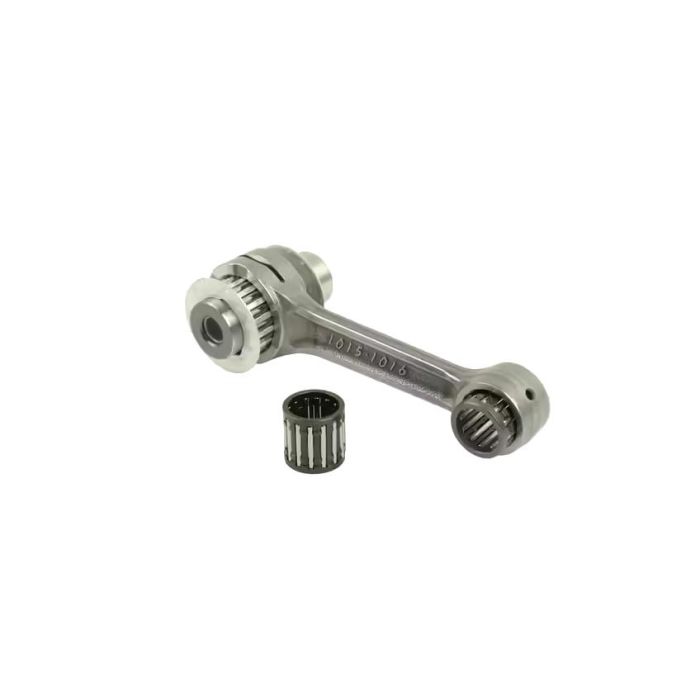

CONNECTING ROD KIT YAMAHA YZ 125 86-00, ATHENA P40321015 GAS GAS EC 125 01-09

ATHENA Connecting Rod Offroad Kit - P40321015

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 29.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 17.00
• Center To Center (mm) 105.00
• Net Weight (Kg) 0.36
• Piston Pin Diameter (mm) 20.00
• Small End Width (mm) 16.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 4PE-11651-02-00
• PSYCHIC MX-09077
• PROX 03.2217
• WOSSNER P2047

Vehicle compatibility

• GAS GAS EC 125 cc 2001/2009
• YAMAHA YZ 125 cc 1986/2000

Part No. 56-981.ATH (oro2u.com)
