CONNECTING ROD KIT 86-96 YZ125, HOT RODS 8104 YAMAHA

main product photo

CONNECTING ROD KIT 86-96 YZ125, HOT RODS 8104 YAMAHA

SKU
56-981.HR
Retail Price £117.88 £98.23 Trade Only: Please login or Click here to find a dealer
Out of stock
Notify me when this product is in stock

PRODUCT INFORMATION

More Information
Brand Hot Rods
Product Type Connecting Rod
Product Group Crankshafts & Parts
Catalogue DIRT

VEHICLE FITMENT

DESCRIPTION

1986 - 1996 Yamaha YZ 125 BIKE

Hot Rods Connecting Rod Kit - 8104
  • High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
  • Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
  • Rods are double-forged to improve grain flow and maintain dimensional consistency
  • Rods are also shot-peened and double-honed for superior strength under heavy loads
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Thrust washers and crank pin bearings are silver-coated for added lubricity

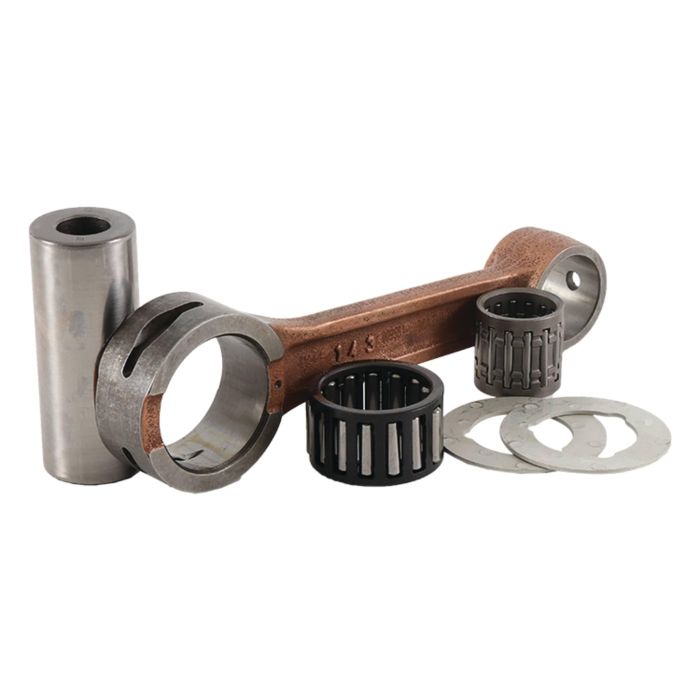

  • Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers

Cross Reference Numbers Only:
YAMAHA: 1LX-11651-00-00,   2HG-11651-00-00,   4PE-11651-00-00,   4PE-11651-01-00, 4PE-11651-02-00

Technical Specifications:

Big End Bearing (mm):



Big End Bore (mm):29.00

Big End Width (mm):.00

Center To Center (mm):105.00

Pin Diameter (mm):22.00

Pin Length (mm):54.30

Small End Bearing (mm):



Small End Bore (mm):20.00

Small End Width (mm):.00

Washer Thickness (mm):1.00000000


Yamaha
  • 1996 Yamaha YZ125
  • 1995 Yamaha YZ125
  • 1994 Yamaha YZ125
  • 1993 Yamaha YZ125
  • 1992 Yamaha YZ125
  • 1991 Yamaha YZ125
  • 1990 Yamaha YZ125
  • 1989 Yamaha YZ125
  • 1988 Yamaha YZ125
  • 1987 Yamaha YZ125
  • 1986 Yamaha YZ125


THIS PART FITS MANY VEHICLES,
CHECK IT FITS YOURS
Check vehicle
Help Install
Spot Something Wrong?
Let us know.Click here
Customers have come to recognize that there is no substitute for the quality of Hot Rods
↑
