CONNECTING ROD KIT 88-96 RM125, PSYCHIC MX-09052 SUZUKI
SKU
56-924.DR
Retail Price
£71.94
£59.95
Trade Only: Please login or Click here to find a dealer
13 In stock
PRODUCT INFORMATION
| Brand | Psychic |
|---|---|
| Product Type | Connecting Rod |
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
VEHICLE FITMENT
DESCRIPTION
SUZUKI
RM125 1988-1996,

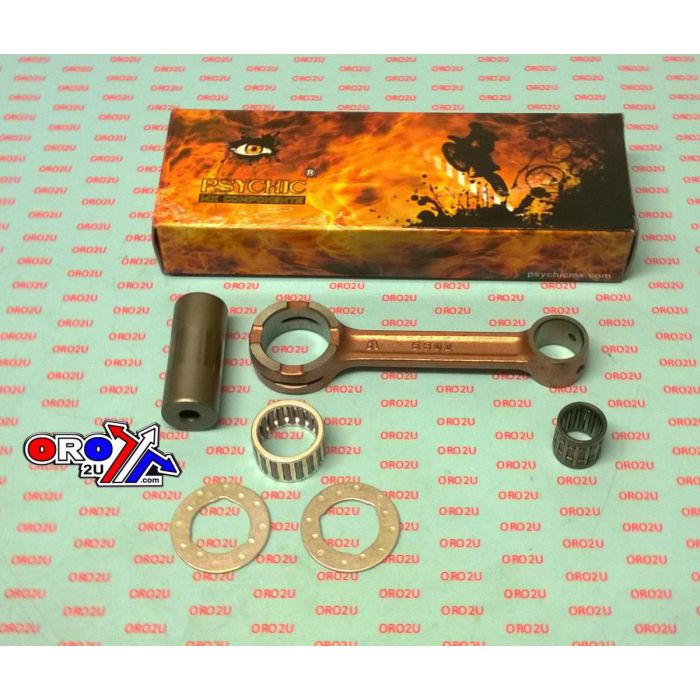

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09052
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 105 |
| Small End Bearing | 15x19x19.80 |
| Small End Bore Ø | 19 |
| Small End Width | 18 |
| Big End Bearing | 22x28x15.8 |
| Big End Bore Ø | 28 |
| Big End Width | 16 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 53 |
| Washer Thickness | 1.0 |
Part No. 56-924.DR (oro2u.com)
Cross Reference Numbers Only:
SUZUKI: 12161-01B41, SUZUKI: 12161-27C00-0B0, SUZUKI: 12161-27C00-0D0, SUZUKI: 12161-27C10,
SUZUKI: 12161-43D00, HOTRODS 8110, PROX 03-3207, WOSSNER P2015,
Suzuki
- 1996 Suzuki RM125
- 1995 Suzuki RM125
- 1994 Suzuki RM125
- 1993 Suzuki RM125
- 1992 Suzuki RM125
- 1991 Suzuki RM125
- 1990 Suzuki RM125
- 1989 Suzuki RM125
- 1988 Suzuki RM125
