CONNECTING ROD 04-17 CRF250R, WOSSNER P4001 04-09 CRF250X
SKU
56-935.WO
Retail Price
£148.01
£123.34
Trade Only: Please login or Click here to find a dealer
Out of stock
PRODUCT INFORMATION
| Brand | Wossner |
|---|---|
| Product Type | Connecting Rod |
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
VEHICLE FITMENT
DESCRIPTION
HONDA
CRF250R 2004-2017,
CRF250X 2004-2009,

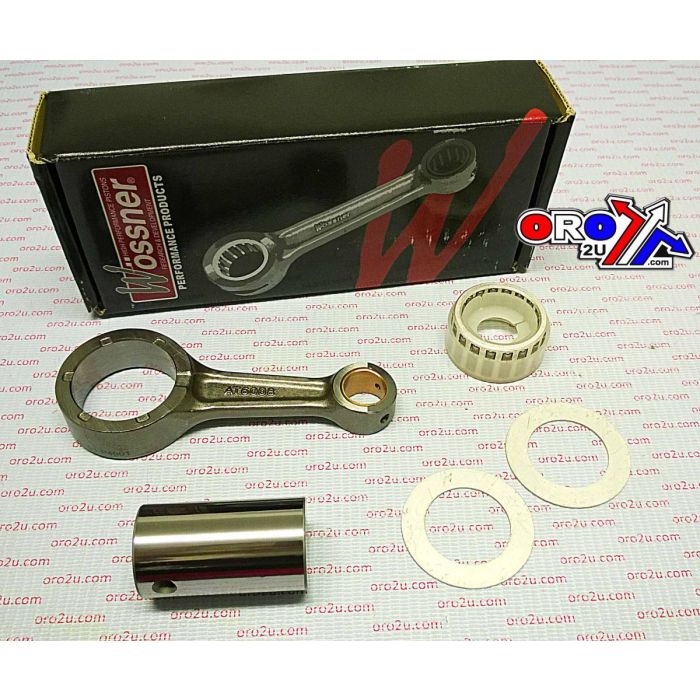

Connecting Rod CONROD REBUILD KIT. Wossner P4001
- Made in Germany.
- Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers.
- High-quality replacement kits are manufactured from hot-rolled Alloy Steel and case-hardened to 58-62 Rc
- Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion.
- Rods are double-forged to improve grain flow and maintain dimensional consistency
- Rods are also shot-peened and double-honed for superior strength under heavy loads
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing.
| SIZE | MM |
| Centre 2 Centre | 90.00 |
| Small End Bearing | 16x18x15 |
| Small End Bore Ø | 18 |
| Small End Width | 15.00 |
| Big End Bearing | 30x38x17.8 |
| Big End Bore Ø | 38 |
| Big End Width | 18.00 |
| Big End Pin Ø | 30 |
| Big End Pin Length | 53.00 |
| Washer Thickness | 1.00 |
CONNECTING ROD SIZE PLEASE SEE DRAWING.
SIZE mm. A = 90, B = 16, C = 30, D = 17.80, E = 15, F = 53
Part No. 56-935.WO (oro2u.com)
Cross reference numbers.
P4001, 13000-KRN-A60, 13000-KSC-A11, PROX 03-1334, HOTRODS 8616
