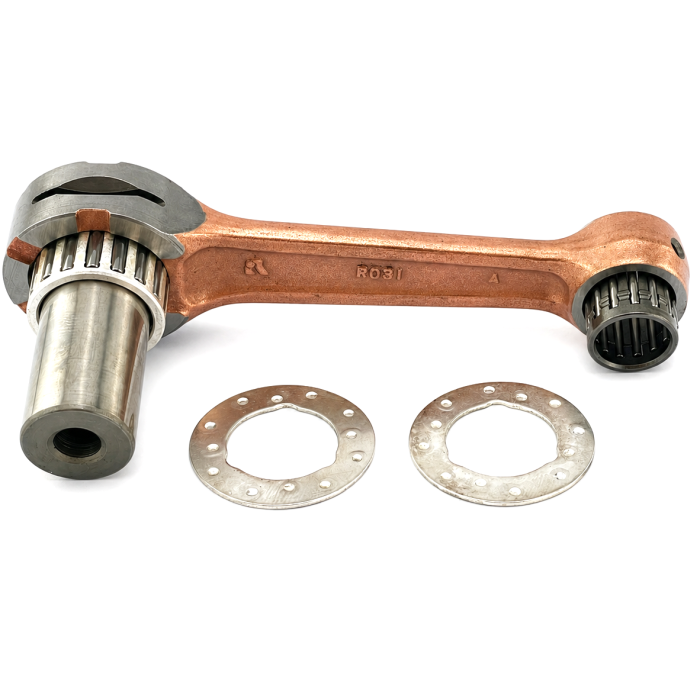

CONNECTING ROD 04-11 RM125, NAMURA RX-30008 MX-09059-1

Connecting rod rebuild kit for Suzuki RM125 (2004–2008), designed as a heavy-duty OE replacement. Manufactured using certified chrome alloy steel for enhanced strength and durability, this kit meets or exceeds OEM quality standards. All components are factory tested for reliability and performance, ensuring a direct OEM replacement.

Features

• Heavy-duty connecting rod designed as an OE replacement.
• Constructed from certified chrome alloy steel for superior strength.
• Crankpins are made from hot-rolled ASTM steel and case-hardened for durability.
• High-rpm longevity ensured with advanced caged needle roller bearing designs.
• Bronze phosphor thrust washers with a silver coating for added performance.
• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
• Fully compatible with aftermarket and OE crankshafts.
• Meets or exceeds OEM quality and reliability standards.

Specifications

• Centre-to-Centre: 110 mm
• Small End Bearing: 15x19x19.80 mm
• Small End Bore Ø: 19 mm
• Small End Width: 16 mm
• Big End Bearing: 22x28x15.80 mm
• Big End Bore Ø: 28 mm
• Big End Width: 16 mm
• Big End Pin Ø: 22 mm
• Big End Pin Length: 52.70 mm
• Washer Thickness: 1.0 mm

Cross Reference OEM Part Numbers

• Suzuki: 12161-36E11
• Suzuki: 12161-36E12
• Suzuki: 12161-36F20
• Suzuki: 12161-36F21
• Psychic MX-09059-1
• ProX 03.3224
• Wiseco WPR195
• Wossner P2016
• Hot Rods 8615

Vehicle Fitments

• Suzuki RM125: 2004–2008
