CONNECTING ROD 04-11 RM125, HOT RODS 8615 SUZUKI MX
SKU
56-925.HR
Retail Price£117.88£98.23Trade Only: Please login or Click here to find a dealer
2 In stock
PRODUCT INFORMATION
More Information
Brand
Hot Rods
Product Type
Connecting Rod
Product Group
Crankshafts & Parts
Catalogue
DIRT
VEHICLE FITMENT
DESCRIPTION
2004 - 2008 Suzuki RM 125,

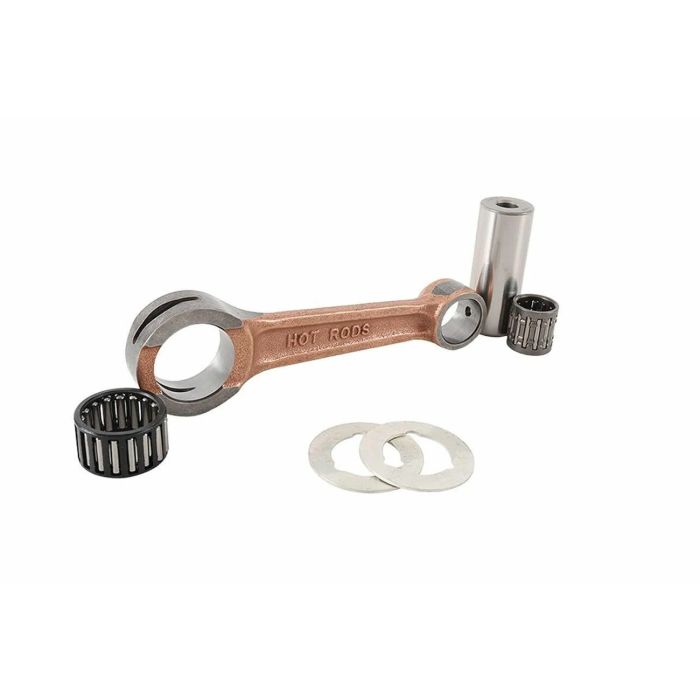

Hot Rods Connecting Rod Kit - 8615
Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers
High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
Rods are double-forged to improve grain flow and maintain dimensional consistency
Rods are also shot-peened and double-honed for superior strength under heavy loads
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Thrust washers and crank pin bearings are silver-coated for added lubricity
Technical Specifications: Big End Bearing (mm): 22x28x16 Big End Bore (mm): 28.00 Big End Width (mm): 15.90 Center To Center (mm): 110.00 Pin Diameter (mm): 22.00 Pin Length (mm): 52.70 Small End Bearing (mm): 15x19x19.5
Suzuki
2007 Suzuki RM125
2006 Suzuki RM125
2005 Suzuki RM125
2004 Suzuki RM125
2004 - 2008 Suzuki RM 125,
Hot Rods Connecting Rod Kit - 8615
Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers
High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
Rods are double-forged to improve grain flow and maintain dimensional consistency
Rods are also shot-peened and double-honed for superior strength under heavy loads
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Thrust washers and crank pin bearings are silver-coated for added lubricity
Technical Specifications: Big End Bearing (mm): 22x28x16 Big End Bore (mm): 28.00 Big End Width (mm): 15.90 Center To Center (mm): 110.00 Pin Diameter (mm): 22.00 Pin Length (mm): 52.70 Small End Bearing (mm): 15x19x19.5
2 In stock
