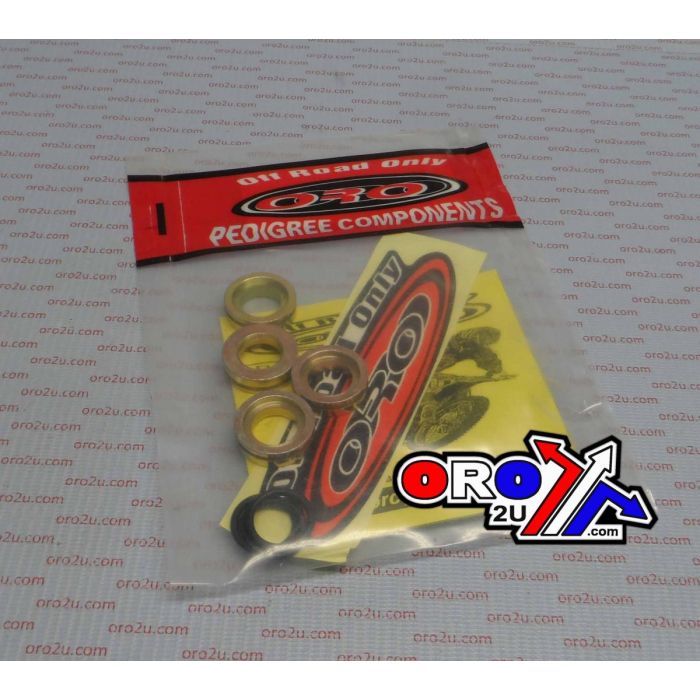

BUSH / CAP SWINGARM 15x26x7.60mm CAP SWING ARM PIVOT 11012-1259 PACK OF 4 WITH O-RINGS - Clearance

Bush / Cap – For Swingarm Roller Pin pack of 4.

Type: Stepped bush with seal groove and o-rings

Dimensions:

• Outer Diameter (OD): 25.98 mm

• Overall Width: 7.60 mm

Internal Bore (Stepped):

• Primary Inside Diameter: 19.95 mm

• Secondary Inside Diameter: 14.97 mm

• Step Depth: 2.80 mm

Seal Groove:

• Width: 1.80 mm

• Depth: 1.20 mm

Interpreted Structure

• The bush has a stepped internal bore:

  • 19.98 mm section

  • stepping down to 14.98 mm

• The step is 2.80 mm deep from one face.

• A seal groove (likely for an O-ring or dust seal) is machined on the outer surface.
