WIRING LOOM LIGHTS INDICATOR UNIVERSAL MOTORCYCLE ENDURO MOT ROAD USE

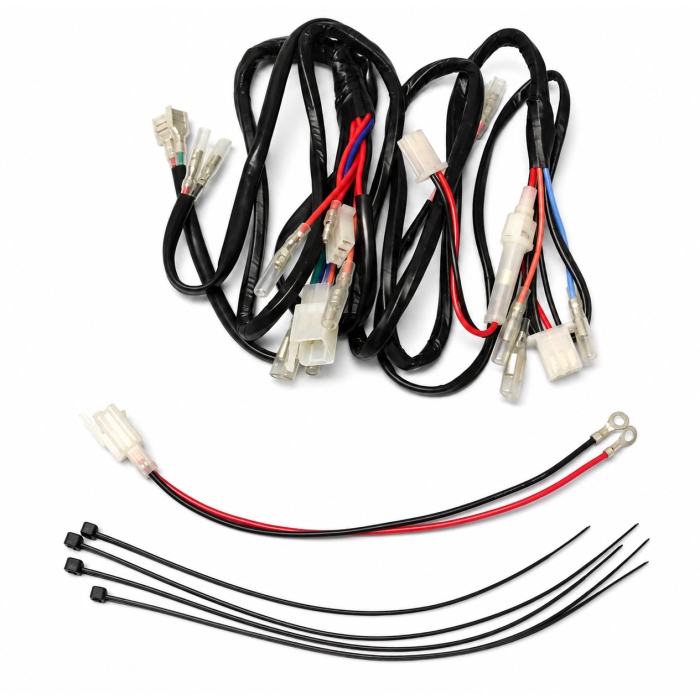

This universal motorcycle light and indicator wiring loom is designed for enduro-style lighting kit installations, providing a separate harness for connecting road-use lighting components without interfering with the motorcycle’s main wiring harness.

Features

• Suitable for universal motorcycle light and indicator wiring applications
• Designed for enduro-style lighting kit installations
• Supports conversion of a motorcycle for road use and MOT lighting requirements
• Operates separately from the main wiring harness to help avoid interference with existing electrical systems
• Provides front and rear wiring connections for indicators, brake light, tail light, horn, switches and flasher relay
• Refer to the supplied wiring diagram before installation
• Refer to the vehicle service manual when removing or installing stock components
• Improper installation or modification may damage the lighting kit or vehicle
• Verify all wire colours and connections before installation, as wire colours may vary depending on application
• Ensure all connectors are secure and properly insulated before operating the vehicle

Enduro Lighting Kit Wire Harness Wiring Guide

This wire harness is designed for use with an enduro-style lighting kit. Always refer to your vehicle’s service manual when removing or installing stock components. Improper installation or modification may damage the lighting kit or vehicle.

Front Wiring Connections

• Blue/Red – Flasher relay
• Control Switch – Main handlebar control switch connection
• Red/Red – ON/OFF switch wire
  • May also be Yellow/Black on some applications
• Black/Red – Front brake switch wire
  • Optional connection
• Green/Red – Horn
• Black – Left/right turn signal negative wire
• Light Blue – Right turn signal positive wire
• Orange – Left turn signal positive wire

Battery and Power Connections

• Battery Negative (-) – Black wire
• Battery Positive (+) – Red wire
• Fuse – Inline fuse on positive power lead

Rear Wiring Connections

• Rear Tail/Brake Light – Rear light connection
• Light Blue – Right turn signal positive wire
• Black – Left/right turn signal negative wire
• Pink – Rear brake switch wire

General Notes

Verify all wire colors and connections before installation. Wire colors may vary slightly depending on the application. Make sure all connectors are secure and properly insulated before operating the vehicle.
