TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5
SKU
VIN-KTK09-1.5
Retail Price
£641.71
£534.76
Trade Only: Please login or Click here to find a dealer
Out of stock
Piston Kit for off-road applications. Alt/OEM: 11004-049,11009-028,13033-027,16062-016,18067-008. SKU: VIN-KTK09-1.5.
PRODUCT INFORMATION
| Weight | 0.001 kg |
|---|---|
| Brand | Vintco |
| Product Type | Piston Kit |
| Product Group | Piston Kits |
| Alternate SKU's | 11004-049, 11009-028, 13033-027, 16062-016, 18067-008 |
VEHICLE FITMENT
DESCRIPTION

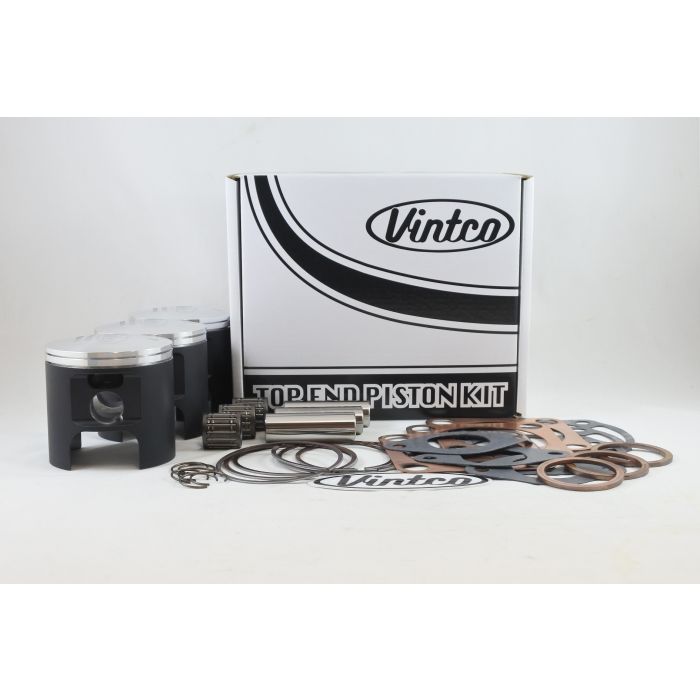

VintCo KTK09-1.5 is a top end piston kit for 1972-1975 Kawasaki H2-750 models with an 18 mm wrist pin bore and 72.5 mm bore size, 1.5 mm oversize. The kit is intended for top end rebuilds and includes three high performance/race piston assemblies with rings, pins and clips, three wrist pin bearings, and a complete top-end gasket set covering the head, base, intake and exhaust. Components are manufactured using modern materials and processes for OEM-equivalent or better fit and performance. This kit is for use only with VintCo Heavy Duty High Performance Crankshaft CR2010, and the kit price is 10% lower than purchasing the components individually. Additional size options are also available.
Features
- Complete top end rebuild kit
- Includes three piston assemblies with rings, pins and clips
- Includes top end bearings
- Includes a full top-end gasket set
- Covers head, base, intake and exhaust sealing points
- High performance/race piston configuration
- MoS2-coated pistons for running-in
- For use only with VintCo Heavy Duty High Performance Crankshaft CR2010
- OEM cross-reference part numbers provided for fitment verification
- Additional size options available
- Kit price is 10% lower than purchasing the components individually
Specifications
- VintCo Part Number: KTK09-1.5
- Product type: Top End Piston Kit
- Wrist pin bore: 18 mm
- Nominal bore size: 72.5 mm
- Oversize: 1.5 mm over
- Piston quantity: 3
- Piston size: 72.43 mm
- Piston clearance: 0.07 mm
- Piston construction: Forged
- Piston coating: MoS2
- Country of manufacture: Germany
- Head gaskets included: 3
- Base gaskets included: 3
- Intake gaskets included: 3
- Exhaust gaskets included: 3
- Wrist pin bearings included: 3
Cross-Reference OEM Part Numbers
- Head gasket: 11004-049
- Base gasket: 11009-028
- Intake gasket: 16062-016
- Exhaust gasket: 18067-008
- Wrist pin bearing: 13033-027
Vehicle Fitments
- 1972 Kawasaki H2-750
- 1973 Kawasaki H2-750
- 1974 Kawasaki H2-750
- 1975 Kawasaki H2-750
VintCo produces new components for vintage 2-strokes, with strong coverage in piston kits, gaskets, connecting rods and crankshaft parts. It is a practical brand for customers handling restoration, rebuild and hard-to-find engine work
