TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.0mm 1.0mm OVER VINTCO KTK09-1.0

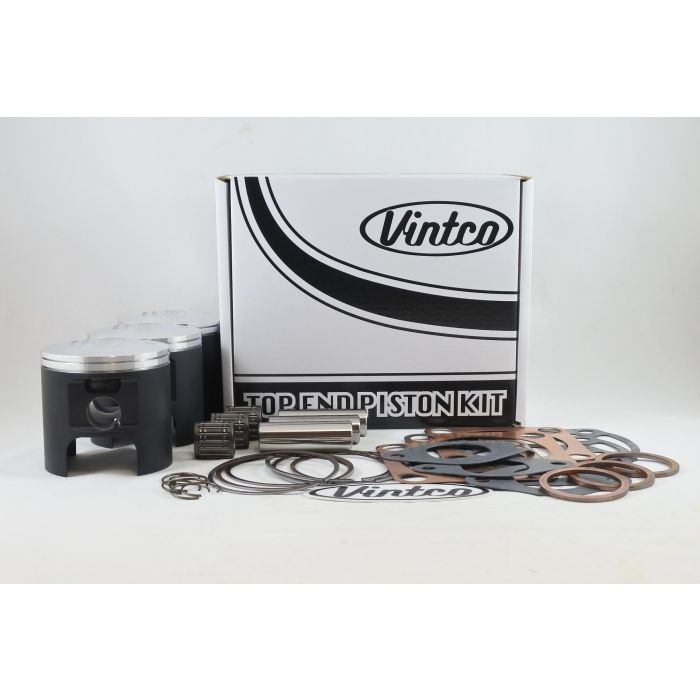

VintCo KTK09-1.0 is a top end piston kit for 1972-1975 Kawasaki H2-750 models, supplied in 72.0 mm size at 1.0 mm over with an 18 mm wrist pin bore. The kit contains three high-performance/race piston assemblies with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set covering the head, base, intake and exhaust positions. It is manufactured using modern materials and processes for OEM-equivalent fitment and performance, is intended for use only with VintCo Heavy Duty High Performance Crankshaft CR2010, and is also available in other size options.

Features

• Complete top-end rebuild kit
• Includes three high-performance/race piston assemblies with pistons, rings, pins and clips
• Includes three wrist pin bearings
• Includes a full top-end gasket set for head, base, intake and exhaust positions
• Produced for OEM-equivalent fitment and performance
• MoS2-coated pistons for break-in
• For use only with VintCo Heavy Duty High Performance Crankshaft CR2010
• OEM cross-reference numbers provided for fitment verification
• Kit price stated as 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK09-1.0
• Product Type: Top End Piston Kit
• Bore Size: 72.0 mm
• Oversize: 1.0 mm over
• Wrist Pin Bore: 18 mm
• Piston Quantity: 3
• Piston Diameter: 71.93 mm
• Piston Clearance: 0.07 mm
• Piston Construction: Forged
• Pistons made in Germany
• Piston Coating: MoS2
• Head Gaskets Included: 3
• Base Gaskets Included: 3
• Intake Gaskets Included: 3
• Exhaust Gaskets Included: 3
• Wrist Pin Bearings Included: 3

Cross-Reference OEM Part Numbers

• Head Gasket: 11004-049
• Base Gasket: 11009-028
• Intake Gasket: 16062-016
• Exhaust Gasket: 18067-008
• Wrist Pin Bearing: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
