TOP END CYLINDER KIT 100mm Bore 00-07 BMW DAKAR F650GS 11117652877 11257652879

100mm Cylinder Piston Gasket Top End Rebuild Kit

Compatible Models:

BMW

• F 650 CS Scarver 2001-2005
• F 650 GS Dakar 2000-2007

Features:

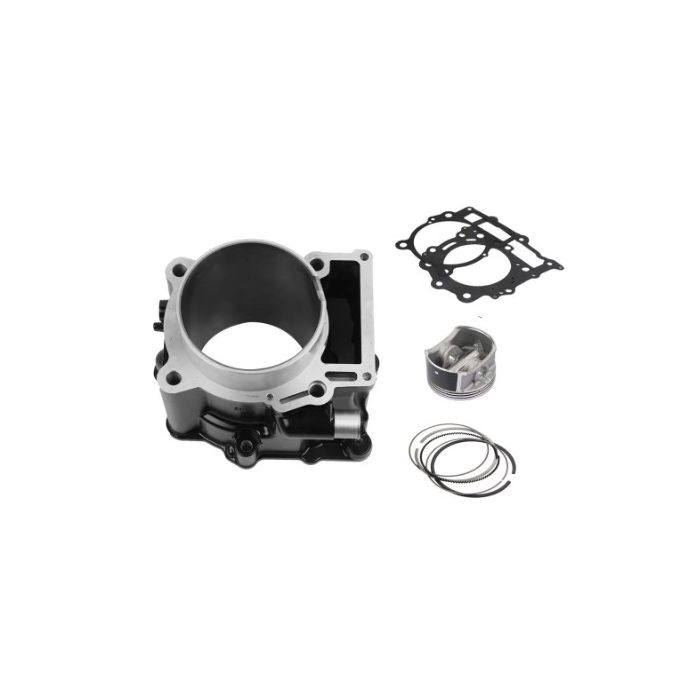

• Complete kit includes cylinder, piston, rings, pin, clips, and top-end gasket kit (everything shown in the picture).
• The piston is anodized for exceptional heat resistance and an extended lifespan.
• High-quality gaskets made from performance materials enhance durability and reliability.
• Includes all gaskets required for a top-end rebuild.
• Kit designed for standard bore size: 100mm x 83mm stroke, with a 22mm steel piston pin.
• Compression Ratio: 11.5:1.
• An excellent, cost-effective replacement for defective original cylinders.

Specifications:

• Condition: Aftermarket, 100% Brand New
• Quantity: 1 Set
• Material: Aluminum
• Displacement: 652cc
• Bore Type: Standard Bore
• Bore Diameter: STD 100mm
• Stroke: 83mm
• Pin Diameter: 22mm

Replacement Part Numbers:

• Cylinder: 11117652877
• Cylinder Base Gasket: 11117706497
• Cylinder Head Gasket: 11127678889
• Piston (Std): 11257652879
• Pin, Piston: 11257675304
• Piston Ring Set (Std): 11257652980
• Circlips, piston: 11257652916

Package Includes:

• 1x Cylinder
• 1x Piston
• 1x Piston Ring Set
• 1x Wristpin
• 2x Circlips
• 1x Cylinder Base Gasket
• 1x Cylinder Head Gasket
