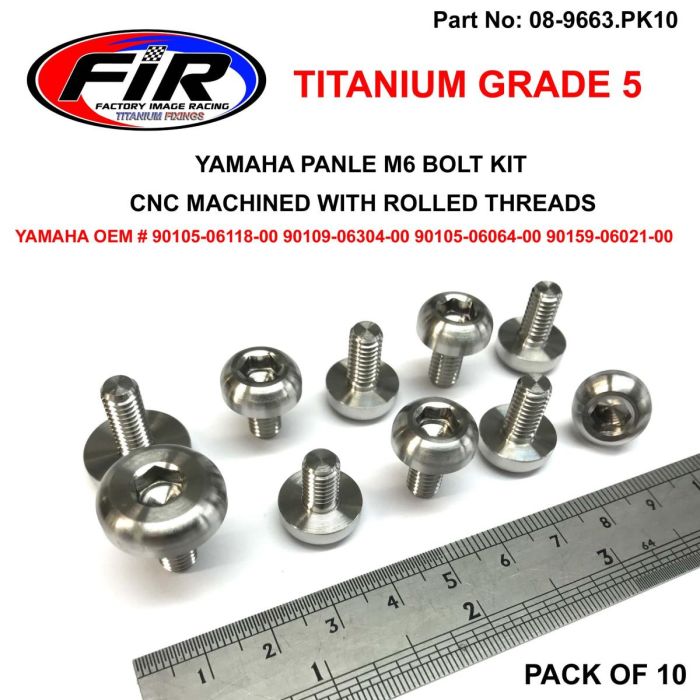

TITANIUM GR5 SIDE PANEL BOLTS PK10, YAMAHA 2x10mm 6x12mm 2x14.5mm, FIR BRAND / PACK OF 10

This Factory Image Racing Titanium Grade 5 M6 Yamaha panel bolt pack supplied as a 10-piece mixed-length set for replacing selected radiator, radiator tank and lower side panel fasteners. The kit is intended for Yamaha applications using M6 panel bolts and includes 10 mm, 12 mm and 14.5 mm bolts for the specified mounting positions.

Features

• Suitable for Yamaha panel, radiator and side panel fastener replacement
• Supplied as a mixed-length 10-piece bolt kit
• Helps replace rusty original hardware
• Corrosion-resistant titanium construction
• CNC-machined fasteners
• Allen-head design for hex key installation
• Used for upper radiator, upper and lower radiator tank, lower side panel and lower radiator positions
• Brand: Factory Image Racing (08-9663.PK10)

Specifications

• Material: Aerospace Grade 5 titanium, 6Al/4V
• Thread diameter: M6
• Thread pitch: 1.00 mm
• Allen diameter: 6.00 mm
• Allen length: 4.50 mm
• Thread lengths: mixed sizes
• Pack quantity: 10
• Quantity 2: 10 mm bolts for upper radiator
• Quantity 6: 12 mm bolts for upper and lower radiator tank and lower side panel
• Quantity 2: 14.5 mm bolts for lower radiators
• Titanium Grade 5 is approximately 50% lighter than standard steel hardware
• Stronger than steel

Cross-Reference OEM Part Numbers

• 08-9663.PK10
• 90105-06118-00
• 90109-06304-00
• 90105-06064-00
• 90159-06021-00

Vehicle Fitments

Yamaha

• NIKEN (2019)
• Star Eluder (2018)
• Star Venture (2018)
• TTR110E (2008-2019)
• WR250F (2005-2019)
• WR250R (2008-2019)
• WR250X (2008-2011)
• WR450F (2005-2018)
• YX1000 EPS (2016)
• YX1000 EPS Special Edition (2016)
• YX1000R EPS (2017-2018)
• YX1000R EPS SE (2018-2019)
• YX1000R EPS SS (2017-2019)
• YX1000R EPS SS SE (2017-2019)
• YZ85 (2009-2016)
• YZ125 (2006-2019)
• YZ250 (2006-2019)
• YZ250F (2014-2019)
• YZ250FX (2015-2019)
• YZ250X (2016-2019)
• YZ450F (2006-2019)
• YZ450FX (2016-2019)
