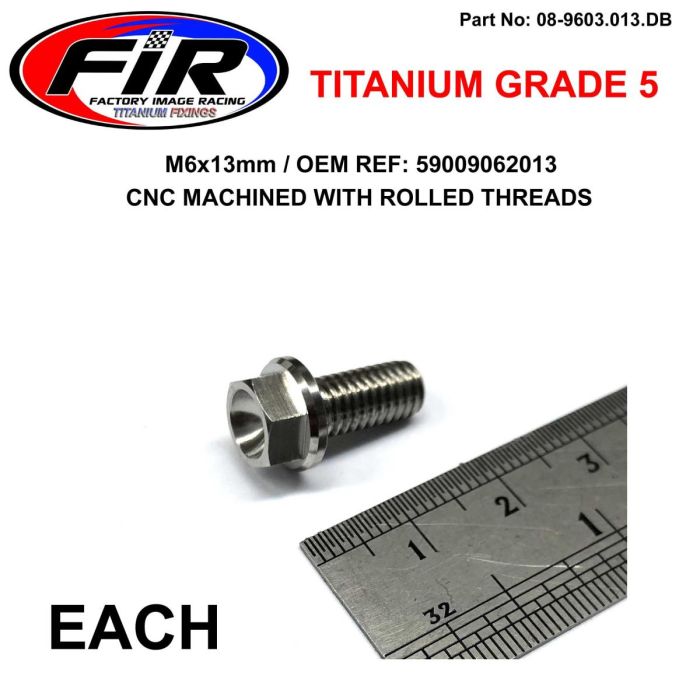

TITANIUM GR5 BOLT M6 x 13mm EACH, FLANGE OD: 10.5mm / HEX SIZE: 8mm, / OEM REF: 59009062013

TITANIUM GRADE 5 (DB) STANDARD FLANGE BOLT

• M6X13mm
• KTM DISC BOLT 59009062013
• Material: Grade 5 (6Al/4V)
• Thread D :  M6

• Pitch P :  1.00mm
• Overall length L: 13mm
• Thread length : 13mm

• Head HEX: 8mm spanner
• Flange OD:10.50mm Standard

FOR DISC BOLT KIT'S

08-380.SET012.TIT / PACK OF 12 BOLT'S FOR THE FRONT AND REAR KTM OEM REF:59009062013  2001>2020

08-380.SET06.TIT / PACK OF 6 BOLT'S FOR THE FRONT OR REAR KTM OEM REF:59009062013  2001>2020

CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9603.013.DB (oro2u.com)

Cross reference numbers > 59009062013
