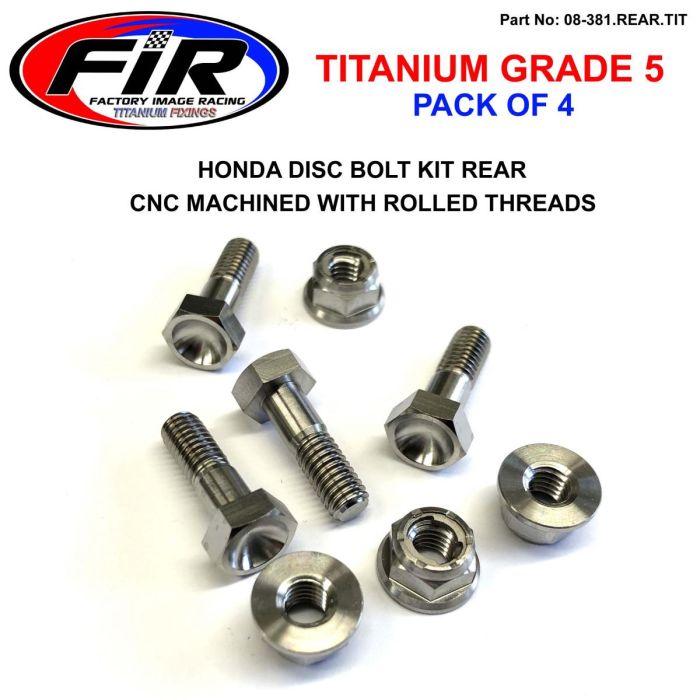

TI GR5 BOLTS DISC HONDA KIT/4, TITANIUM REAR KIT 95>2021, / FIR BRAND

Factory Image Racing>  Giving your machine the Factory look!

TITANIUM GRADE 5

BOLT DISC SET OF 4.   [NUTS & BOLTS] HONDA REAR

HONDA
CRF150/250/450 2002-2019,
CR125/250/500 1995-2007,

BOLT INFO

• Material: Grade 5 (6Al/4V)
• Pitch P :   M6x1.00mm
• Overall length L: 19.60mm
• Thread length : 11.00mm

• Head HEX: 10mm spanner
• Pack QTY : 4

•  OEM Ref: 90105-MAC-680

NUT INFO

• Material : Grade 5 (6Al/4V)

• Pitch : M6x1.00mm
• OD size : 12.70mm
• Overall height : 7.25mm
• Head Hex size : 10mm spanner
• Flange surface area : smooth / flush
• Locking type: Metal insert lock

• Pack QTY : 4

• OEM Ref: 90301-473-003


Part No. 08-381.REAR.TIT

THE TITANIUM BOLTS ARE GRADE 5 WHICH IS THE BEST GRADE TO USE, ITS THE ALPHA GRADE OF TITANIUM AND MORE EXPENSIVE THAN THE OTHER GRADES BEING USED IN THE MOTORCYCLE MARKET, AND JUST A HEADS UP ALL FIR FIXINGS ARE MADE FROM GRADE 5!

 [FACTORY IMAGE RACING] (Distributed oro2u.com)

Cross reference numbers ONLY.
90105-MAC-680, 90301-473-003, 90301-473-013, 90301-MC7-003,
