THROTTLE KIT 2006-2009 LTR450 CR-PRO MODEL MOTION PRO 01-2575

This CR Pro twist throttle conversion kit replaces the original thumb throttle with a straight-pull motorcycle-style twist throttle configured to work with standard fuel-injection/throttle-body systems. Supplied as a complete assembly with CR Pro throttle housing, dedicated throttle cable, throttle sleeve and grips, it is intended to provide precise, consistent throttle operation on machines using standard 7/8 in (22 mm) handlebars and the original controls.

Features

• Converts the original thumb throttle to a straight-pull twist throttle layout
• CR Pro throttle assembly with die-cast aluminium housing and black epoxy finish
• Straight-pull throttle design suitable for EFI / throttle-body applications
• Throttle sleeve approximately 4½ in long with integrated grip retaining ring
• Model-specific throttle cable to suit the standard fuel-injection system and throttle body
• Cable and fittings supplied to connect to the original controls; includes carburettor/throttle-body cap or adaptors where required
• Grips included to complement the CR Pro throttle sleeve
• Supplied as a complete kit for installation on standard 7/8 in (22 mm) handlebars

Specifications

• Manufacturer: Motion Pro
• Product type: ATV twist throttle conversion kit
• Application: Thumb-to-twist conversion for EFI / throttle-body systems
• Housing material: Die-cast aluminium
• Housing finish: Black epoxy coating
• Throttle type: Straight-pull CR Pro twist throttle assembly
• Recommended throttle size: suitable for approximately 34 mm or smaller straight-pull applications
• Throttle sleeve length: about 4½ in with grip retaining ring
• Handlebar compatibility: standard 7/8 in (22 mm) bars

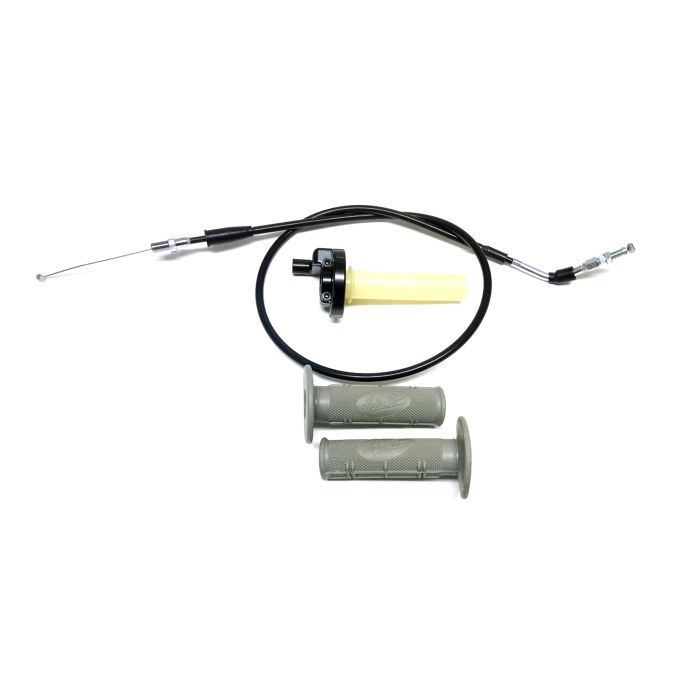

• Kit contents: CR Pro throttle housing, throttle sleeve, model-specific throttle cable, grips, fittings and caps where required
• Product group: Handlebar & Controls (ATV)

Cross-Reference OEM Part Numbers

• Motion Pro CR Pro throttle assembly: 01-0053
• Motion Pro throttle cable (LT-R450 CR Pro application): 01-1034
• Motion Pro CR Pro throttle kit (complete): 01-2575

Vehicle Fitments

• Suzuki LT-R450 QuadRacer 2006–2009
