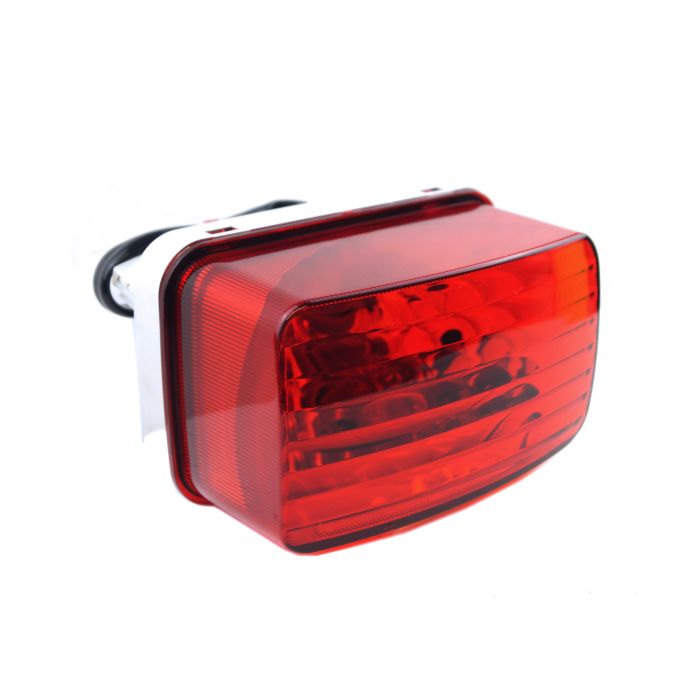

TAILLIGHT UNIT ASSY 02-20 YAMAHA ATV UTV 125 200 250 350 400 450 550 660 700 BRONCO SM-01109

This taillight unit assembly is a rear lighting replacement part for selected Yamaha ATV and UTV models. It is intended to replace the original taillight assembly and provides rear tail/brake light function on compatible Yamaha machines, including Raptor, Grizzly, Rhino, Viking, Wolverine, Banshee, Blaster, Kodiak, Big Bear, Bruin, Breeze and Bear Tracker models.

Features

• Direct OEM replacement for compatible Yamaha ATV and UTV rear lighting applications.
• Meets or exceeds OEM quality requirements.
• Factory tested for reliability at point of sale.
• Designed to handle increased power loads.
• Supplied as a replacement taillight unit assembly.
• Confirm the product image before ordering to avoid fitment errors.

Specifications

• Product type: taillight unit assembly.
• Part number: 44-136.
• Lamp rating: 12 V 21/5 W.
• Lens-only replacement reference: SM-01109A.
• Colour: red.

Cross-Reference OEM Part Numbers

• Bronco SM-01109.
• 8FN-847100-00-00.
• 1S3-84710-00-00.
• 3FA-84710-00-00.
• 5KM-8472C-10.
• 3FA-84710-00.

Vehicle Fitments

• Yamaha ATV YFZ450 R/X 2006-2013.
• Yamaha ATV YFM700 Raptor 2006-2012.
• Yamaha ATV Breeze 2002-2004.
• Yamaha ATV Grizzly 125 2004-2013.
• Yamaha ATV Raptor 125 2011-2013.
• Yamaha ATV Blaster 200 2002-2006.
• Yamaha ATV Bear Tracker 250 2003-2004.
• Yamaha ATV Big Bear 250 2007-2009.
• Yamaha ATV Raptor 250 2008-2013.
• Yamaha ATV Banshee 350 2002-2006.
• Yamaha ATV Bruin 350 2004-2006.
• Yamaha ATV Grizzly 350 2007-2014.
• Yamaha ATV Warrior 350 2002-2004.
• Yamaha ATV Wolverine 350 2003-2005.
• Yamaha ATV Big Bear 400 2003-2012.
• Yamaha ATV Grizzly 400 2007.
• Yamaha ATV Grizzly 450 2007-2014.
• Yamaha ATV Kodiak 450 2003-2006.
• Yamaha ATV Grizzly 550 2009-2014.
• Yamaha ATV Grizzly 660 2003-2015.
• Yamaha ATV Grizzly 700 2003-2015.
• Yamaha UTV Rhino 450 2006-2009.
• Yamaha UTV Rhino 700 2008-2012.
• Yamaha UTV Viking 700 2018-2020.
• Yamaha UTV Wolverine 700 2016-2018.
• Yamaha UTV Rhino 660 2004-2007.
• Yamaha UTV Wolverine R-Spec 2016.
• 2006 Yamaha Raptor 700 YFM700RV taillight.
• 2006 Yamaha Raptor 700 50th Anniversary YFM700RSPV taillight.
• 2007 Yamaha Raptor 700 YFM70RW taillight.
• 2007 Yamaha Raptor 700 GYTR Edition YFM70RYRW taillight.
• 2007 Yamaha Raptor 700 Special Edition YFM70RSEW taillight.
• 2007 Yamaha Raptor 700 Special Edition 2 YFM70RSE2W taillight.
• 2008 Yamaha Raptor 700 YFM70RX taillight.
• 2008 Yamaha Raptor 700 YFM70RXGY taillight.
• 2008 Yamaha Raptor 700 YFM70RXL taillight.
• 2008 Yamaha Raptor 700 Special Edition YFM70RSPX taillight.
• 2008 Yamaha Raptor 700 Special Edition 2 YFM70RSP2X taillight.
