SWITCH UNIVERSAL COMPACT T/S K&S 12-0040

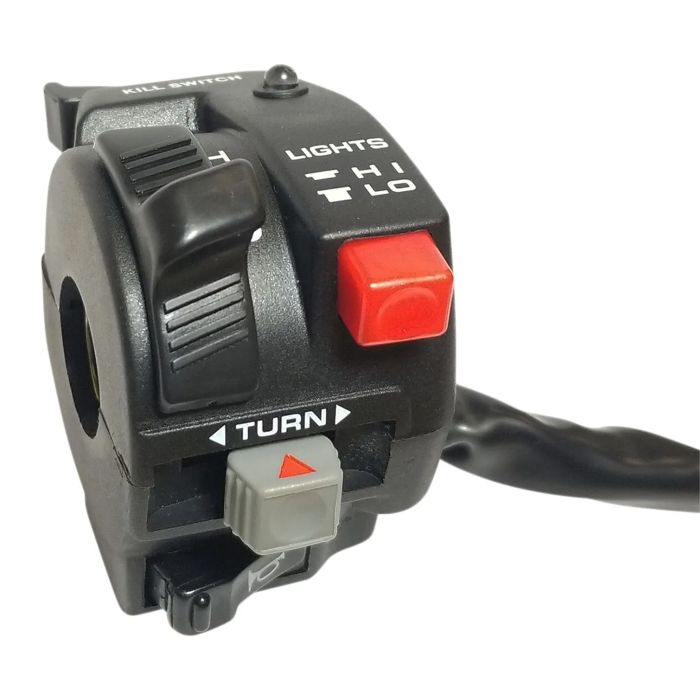

The K&S 12-0040 road conversion switch assembly is a handlebar-mounted control unit for managing turn signals, headlight functions, horn operation and engine stop control on motorcycles with 7/8 inch handlebars.

Features

• Turn signal control for right, left and centre push-cancelling operation
• Headlight controls for high beam, low beam, off, parking and on positions
• Passing light function
• Horn control
• Kill switch function
• LED indicator for high beam

Specifications

• Handlebar fitment: 7/8 inch
• Overall wire length: 25 inches
• Connector: 9-pin
• Wire colour coding: yellow for high beam
• Wire colour coding: black for horn ground
• Wire colour coding: brown for left signal
• Wire colour coding: green for low beam
• Wire colour coding: brown/white for turn signal main flasher
• Wire colour coding: red for main power
• Wire colour coding: blue for parking light
• Wire colour coding: pink for horn
• Wire colour coding: dark green for right signal
• Wire colour coding: blue/white for kill switch main

Cross-Reference OEM Part Numbers

• K&S 12-0040
