SWING ARM BEARING TOOL

Swing Arm Bearing Tool

Description:

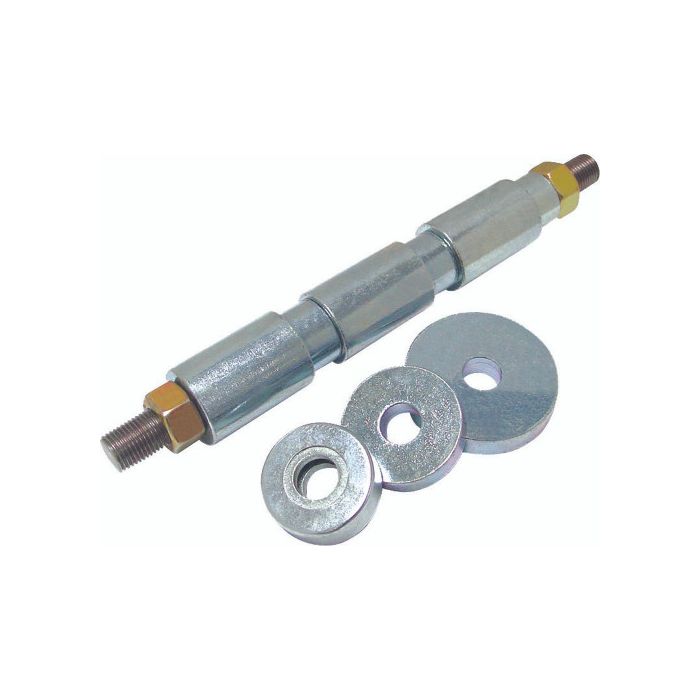

• Swingarm/Linkage Bearing Removal / Install Tool
• Designed for installation of the swing arm bearings without damaging the steel on late model Japanese motorcycles. Using the correct size insert (various sizes included in kit) and the puller, the mechanic can draw the bearing into the swing arm without beating on it with a hammer.

Specifications:

• THREADED ROD X 1PC
• THRUST BEARING X 1PC
• DRIVER 1 (22.0MM/26.8MM) X 1 PC
• DRIVER 2 (21.0MM/26.0MM) X 1 PC
• DRIVER 3 (20.0MM/26.0MM) X 1 PC
• LARGE WASHER X 1 PC
• SMALL WASHER X 1 PC
• NUT X 2 PCS
• MATERIAL: S45C
• FINISHED: ZINC PLATED

Notes:

• Keep checking and make sure the bearing is straight while tightening the nut.
• Be sure to drive the bearing to the exact location required by the manufacturer's specification or measure the bearing's location prior to performing the removal procedure.
• Clean and lubricate the threaded rod before use.

Features:

• Designed for installation of the swing arm bearings on late-model Japanese motorcycles.
• Puller draws bearing into the swing arm. Includes three drivers for use with common bearing sizes.

Additional Information:

• Best value for money.
• All are made to OEM specifications and match the original equipment in appearance.
• ORO products are a high-quality replacement part and carry our guarantee of your satisfaction.
• Please check the image before ordering to avoid mistakes.

APPLICATION BEARING SIZE

• HONDA: 22x28, 22x29
• KAWASAKI: 20x27, 22x28, 22x29
• SUZUKI: 20x27, 21x27, 22x28, 22x29
• YAMAHA: 20x27, 22x27, 22x28

Cross reference numbers: 08-0213, UP-12052
