SUSPENSION BUSH M12 46mm WELD ON BRACKET 40x51mm UNIVERSAL FIT

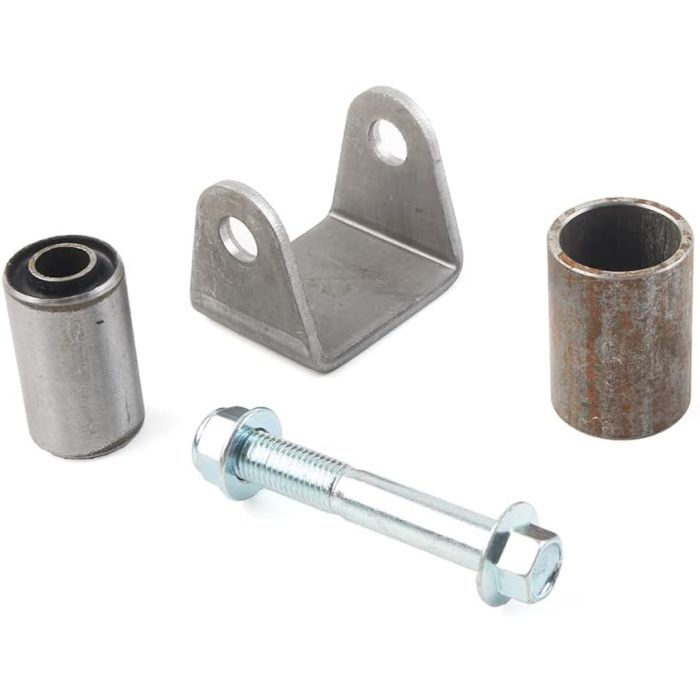

This weld-on suspension bush kit is designed for custom fabrication on go-karts, ATVs and buggies. It comprises a metal outer sleeve (bushing), a matching inner spacer/bushing, a weld-on mounting bracket, and a bolt with nut, providing a compact pivot assembly for suspension linkages and similar joints.

Features

• Weld-on bracket and sleeve arrangement for custom chassis and suspension builds
• Universal layout suitable for go-kart, ATV and buggy applications
• Complete kit including outer sleeve, inner spacer, mounting bracket, bolt and nut
• Through-bolt design for a secure, serviceable pivot point

Specifications

Part 1: Bushing

• Outer diameter: 25 mm
• Inner diameter: 12 mm
• Length: 41 mm

Part 2: Mounting Bracket

• Thickness: 3.5 mm
• Height: 51 mm
• Width (between plates): 46 mm
• Base width: 40 mm
• Hole diameter: 12 mm

Part 3: Spacer

• Outer diameter: 34 mm
• Inner diameter: 25 mm
• Length: 42 mm
• Wall thickness: 4.5 mm

Part 4: Bolt & Nut

• Bolt size: M12 × 70 mm
