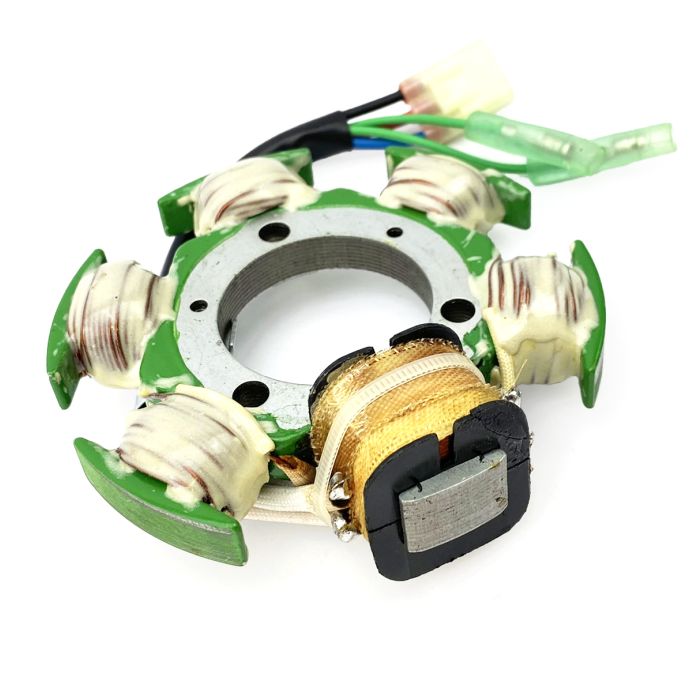

STATOR YAMAHA 800, WC-01422, PWC, JET SKI, 63M-85510-00

This generator stator assembly is designed for the Yamaha two-stroke WaveRunner 800 models listed, restoring charging output and ignition trigger signals within the magneto assembly. Supplied as a complete unit, it includes the pickup (pulsar) coil, pre-terminated connectors and grommet for straightforward installation.

Features

• Direct replacement for the original stator assembly
• Plug-and-play connection with pre-installed connectors
• Pickup (pulsar) coil included
• Rubber wiring grommet included
• High-temperature copper windings

Specifications

• Type: Generator stator coil assembly
• Internal diameter: 42 mm
• External diameter: 104 mm
• Thickness: 16 mm
• Number of wires: 11
• Number of plugs: 6
• Number of pins: 11
• Wire lengths: stator to grommet 45 mm; grommet to plugs 1485 mm; pickup coil to grommet 80 mm
• Resistance (±20%): Alternator White–White 1.2 Ω; Pickup White/Black–White/Red 524 Ω; Source Blue–Brown 344 Ω

Cross-Reference OEM Part Numbers

• 63M-85510-00
• 63M-85510-00-00
• 63M-85510-01-00
• 66E-85510-00-00

Vehicle Fitments

• GP-R 800 (2003–2005)
• XL 800 (2000–2001)
• XLT 800 (2002–2004)
