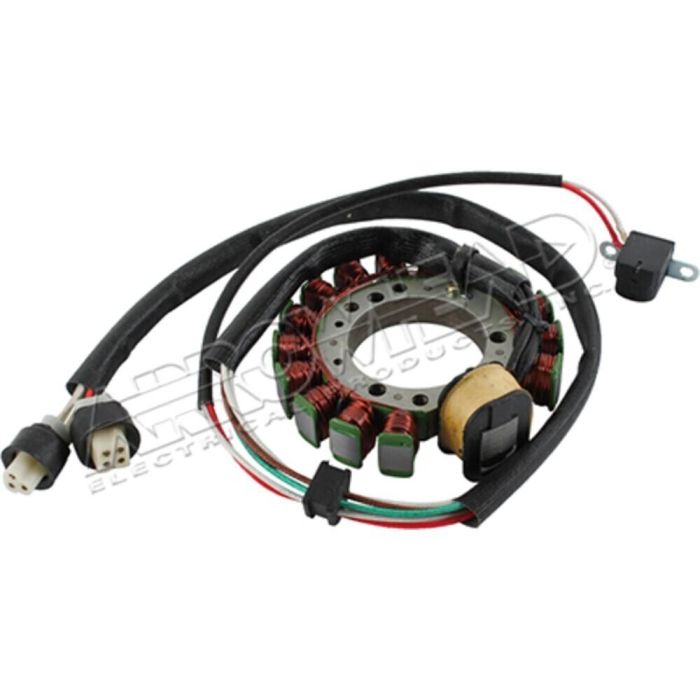

STATOR COIL YFM350 YAMAHA, AYA4032, 3HN-85510-00-00, 1UY-85510-20-00,2XK-85510-20-00
PRODUCT INFORMATION
Brand | Arrowhead Electrical |
---|---|
Product Type | Stator Coil |
Product Group | Ignition & Electrical Parts |
Catalogue | ATV |
VEHICLE FITMENT
DESCRIPTION
Yamaha
YFM350F Big Bear 1990-1994,
YFM350ER Moto-4 1990-1994,
YFM350X Warrior 1990-1995,
YFM Warrior 350cc 1987
YFM Big Bear 350cc 1989
YFM Warrior 350cc de 1990 a 1995
YFM Warrior 350cc de 1988 a 1989
YFM Big Bear 350cc de 1990 a 1994
YFM Moto-4 350cc 1990
YFM Big Bear 350cc 1987
YFM Moto-4 350cc de 1992 a 1994
Technical specifications | |
Tension (voltage) | 12 [V] |
Diametro exterior (external diameter) | 115 [mm] |
Diametro interior (internal diameter) | 54 [mm] |
# bobinas de carga (# power coils) | 15 [UN] |
# bobinas alimentacion (# source coils) | 1 [UN] |
Resistencia bobina (coil resistance) | 300 [Ohm] |
Con sensor (with sensor) | SI |
Resistencia sensor (pick-up resistance) | 350 [Ohm] |
Apply to | |||||
Brand | Model | Version | Displacement | Year | OEM |
00_Estator | 16 polos | Aislado de Masa | |||
Yamaha | YFM | Warrior | 350 | 1987 | 1UY-85510-20-00 |
Yamaha | YFM | Big Bear | 350 | 1989 | 2XK-85510-20-00 |
Yamaha | YFM | Warrior | 350 | from 1990 to 1995 | 3HN-85510-00-00 |
Yamaha | YFM | Warrior | 350 | from 1988 to 1989 | 2XK-85510-20-00 |
Yamaha | YFM | Big Bear | 350 | from 1990 to 1994 | 3HN-85510-00-00 |
Yamaha | YFM | Moto-4 | 350 | 1990 | 3HN-85510-00-00 |
Yamaha | YFM | Big Bear | 350 | 1987 | 1UY-85510-20-00 |
Yamaha | YFM | Moto-4 | 350 | from 1992 to 1994 | 3HN-85510-00-00 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-0969 (oro2u.com)
Cross reference numbers ONLY.
dze 2913, 3HN-85510-00-00, 21-904,
AYA4032 ARROWHEAD
340-58005 J & N
21-904 RICKS MOTORCYCLE
3HN-85510-00-00 YAMAHA
