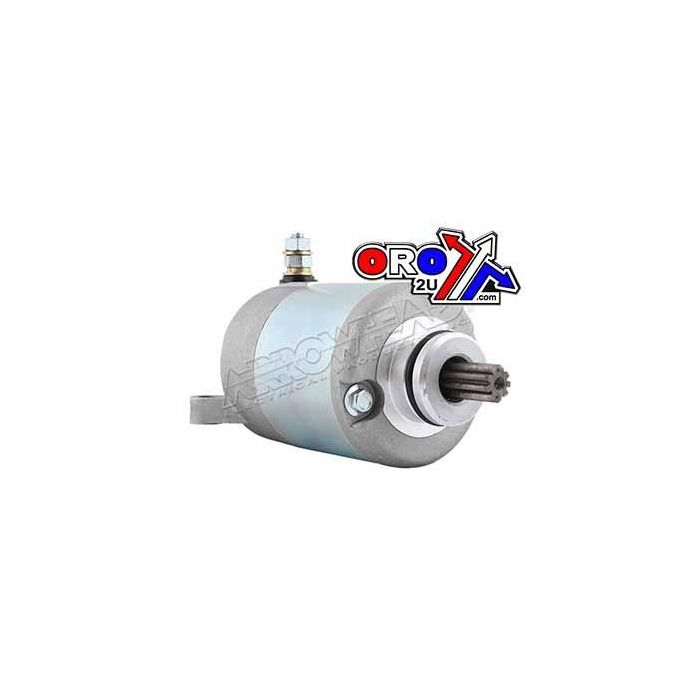

STARTER MOTOR POLARIS, ARROWHEAD 410-22077 SMU0569, 4013428 4014972 4015223 POLARIS

Starter Motor - Arrowhead SMU0569

Compatibility:
Polaris Models:

• Hawkeye 325 2X4 (2015)
• Ranger ETX (2015-2016)
• Ranger ETX EU (2015-2016)
• Sportsman ETX EFI (2015)
• Sportsman ETX EFI MD (2015)
• Sportsman ACE 325 EFI (2014-2016)
• M1400 Gas (2016)

Specifications:

• Type: Permanent Magnet Direct Drive (PMDD)
• Voltage: 12-Volt
• Rotation Direction: Clockwise (CW)
• Number of Teeth: 9
• Gear OD: 0.465" (11.800 mm)
• Length: 3.839" (97.500 mm)
• Mount Hole ID: 16.500 mm
• Mount Hole 1 Type: Unthreaded
• Mount Hole 2 Type: Unthreaded
• Registry OD: 1.181" (30 mm)
• M6 B+ Stud

Mounting Ear Distance:

• 12.366" (160.100 mm)

Features:

• Meets or exceeds OEM quality.
• Direct OEM replacement with stock mounting locations.
• Designed to handle increased power loads.
• Best value for money.
• Made to OEM specifications, matching original equipment appearance.
• All electrical parts are 100% factory tested before shipping.
• Easy installation; consult a professional if unsure.
• Note: No Returns on Electrical Parts.

Cross Reference Numbers:

• SMU0569 (Arrowhead)
• 410-22077 (J & N)
• 4013428 (Polaris)
• 4014972 (Polaris)
• 4015223 (Polaris)
