STARTER MOTOR 13-23 KAWASAKI EX KLE NINJA VERSYS-X SE WINTER TEST EDITION ABS 300 21163-0717

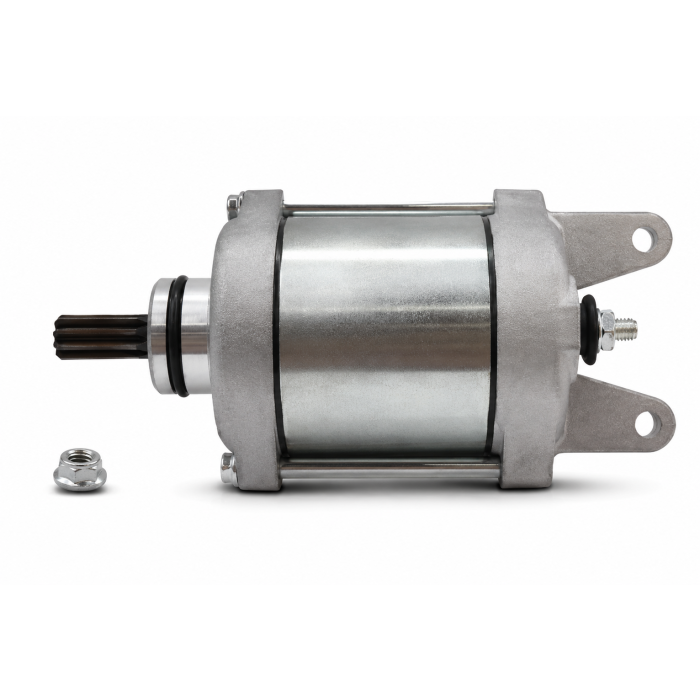

This starter motor is a direct replacement unit for selected Kawasaki EX300 Ninja 300 and KLE300 Versys-X 300 motorcycles. It is designed to engage the engine starting system using the original mounting points and is suitable for replacing the factory starter motor on compatible 296 cc Kawasaki models.

Features

• Permanent magnet direct drive starter motor design
• Direct replacement for the original starter motor
• Uses stock mounting locations
• Designed to handle increased electrical starting loads
• Manufactured to OEM specification and original equipment appearance
• Factory tested before shipping
• Suitable for straightforward installation, with professional fitting recommended if required
• Cost-effective replacement option

Specifications

• Type: Permanent Magnet Direct Drive
• B+ stud: 6 mm x 1.0
• Gear OD: 11.7 mm
• Gear/shaft overall length from bearing: 24.8 mm
• Registration protrusion with O-ring: 16.4 mm
• Field case overall length: 50.1 mm
• Field case OD: 60.0 mm
• Overall length: 157 mm
• Left-hand mounting hole OD: 6.2 mm
• Right-hand mounting hole OD: 6.8 mm
• Mounting hole centre-to-centre distance: 46.2 mm

Cross-Reference OEM Part Numbers

• 410-54265
• 21163-0717

Vehicle Fitments

Kawasaki

• EX300 Ninja 300 (2013-2017)
• EX300 Ninja 300 ABS (2013-2017)
• EX300 Ninja SE (2013-2016)
• EX300 Ninja SE ABS (2014-2016)
• EX300 Ninja Winter Test Edition (2017)
• KLE300 Versys-X (2017-2018)
• KLE300 Versys-X ABS (2017-2018)
• Ninja 300 (2013-2017)
• Ninja 300 ABS (2013-2017)
• Versys-X 300 (2017-2020, 2023)
• Versys-X 300 ABS (2017, 2020-2023)
