SHOCK REAR CF MOTO ATV CFORCE 08-21, BRONCO AU-04472, 9010-060600

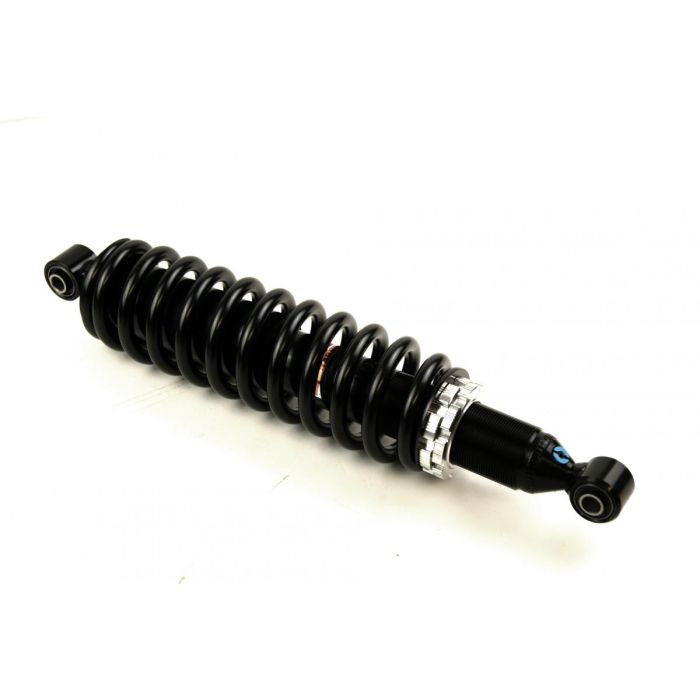

BRONCO HEAVY DUTY GAS SHOCKS AU-04472

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

CF MOTO FITMENT

• CFORCE 500 CF500-2 (2008-2009)
• CFORCE 500 CF500-2A (2008-2009)
• CFORCE 500 HO CF500AU-6L (2015-2018)
• CFORCE 500 SWB (2007-2008)
• CFORCE 500 SWB (2013-2016)
• CFORCE 500-A LWB (2007-2008)
• X5 (CFORCE 500) LWB (2010-2012)
• X5 (CFORCE 500) SWB (2010-2012)
• CFORCE 600 CF600AU-L (2019-2021)

SPECIFICATIONS

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 30
• Tube O.D (mm): 38
• Stroke (mm): 88
• Spring O.D (mm): 75
• Spring Wire Diameter (mm): 10
• Spring Rate (lbs/inch): 75/215
• Spring Rate (kg/mm): 3.5
• Center to Center (mm): 369
• Center to Center (inches): 14 1/2
