SHOCK HD ATV REAR POLARIS BRONCO AU-04416 OEM 7043463

BRONCO HEAVY DUTY GAS SHOCKS AU-04416

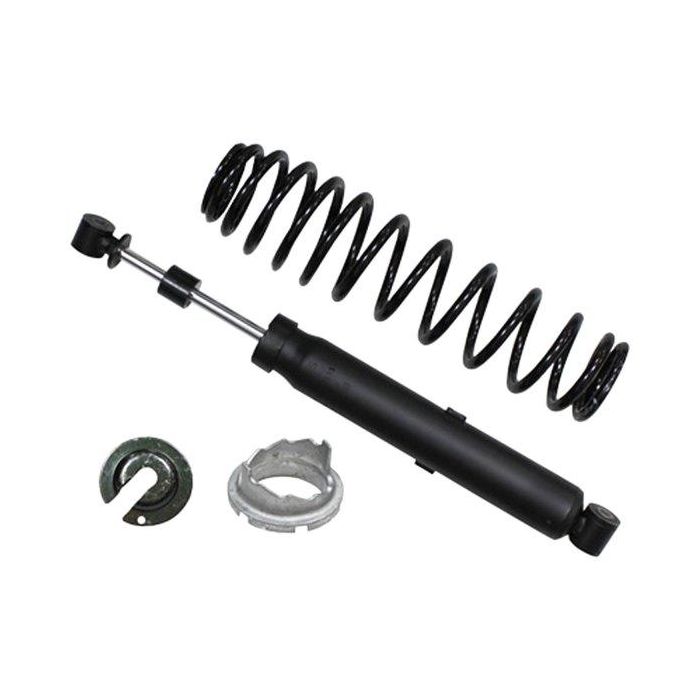

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks. They feature 10% stiffer springs for a better ride and higher load capacity. These shocks work great on the front when installing a snow plow and come in a smooth black colour that blends perfectly with any OEM ATV. They are direct bolt-on replacements, with the spring pre-installed for easy mounting. Sold individually, each shock includes one shock with spring and spring retainers.

POLARIS FITMENT:

• SPORTSMAN 550 2011-13
• SPORTSMAN 550 EPS 2010-14
• SPORTSMAN 550 XP EPS 2014
• SPORTSMAN FOREST 550 2011-14
• SPORTSMAN TOURING EPS 550 2010-14
• SPORTSMAN X2 550/550 EPS 2011-14
• SPORTSMAN XP 550 2009-10
• SPORTSMAN XP 550 HD/EPS HD 2013-14
• SPORTSMAN XP EPS 550 2009
• SPORTSMAN XP TOURING EPS 550 INTL 2012
• 850 FOREST 2015
• SCRAMBLER 850 HO/EPS HO/MD 2013-16
• SCRAMBLER 850 48 / SP 48 2019-21
• SPORTSMAN 850 MV 2012-16
• SPORTSMAN 850 SP 2015-20
• SPORTSMAN TOURING EPS 850 2010-14
• SPORTSMAN TOURING 850/850 SP 2014-20
• SPORTSMAN 850 WV 2014
• SPORTSMAN FOREST 850 2011-14
• SPORTSMAN X2 850 2011
• SPORTSMAN XP 850 2009-17
• SPORTSMAN XP EPS 850 2009-17
• SPORTSMAN XP 850 HO EPS MD 2015
• SPORTSMAN XP TOURING EPS 850 INTL 2012
• SCRAMBLER 1000 MD (R06) 2016-17
• FOREST 1000 2015
• SCRAMBLER 1000 TRACTOR (R07) 2016-17
• SPORTSMAN 1000 MD 2015-16
• SPORTSMAN 1000 XP 48" 2015-21
• SPORTSMAN 1000 XP, TRACTOR (R05) 2016-20
• SPORTSMAN TOURING 1000 XP 48" 2015-20
• SPORTSMAN TOURING TRACTOR 1000 2016-19
• SPORTSMAN XP 1000, ZUG (R04) 2016-19

SPECIFICATIONS:

• Position: Top Hole I.D MM: 10
• Top Eyelet Width MM: 30
• Bottom Hole I.D MM: 10
• Bottom Eyelet Width MM: 35.5
• Tube O.D MM: 50.8
• Stroke MM: 147
• Spring OD MM: 100
• Spring Wire Diameter MM: 10.5
• Spring Rate LBS/INCH: -
• Spring Rate KG/MM: -
• Centre to Centre MM: 503
• Centre to Centre IN: 19 4/5

PART NO: 29-5786 (OFF ROAD ONLY) BRONCO REF: AU-04416 KIMPLEZ/OEM REF: 7043463
