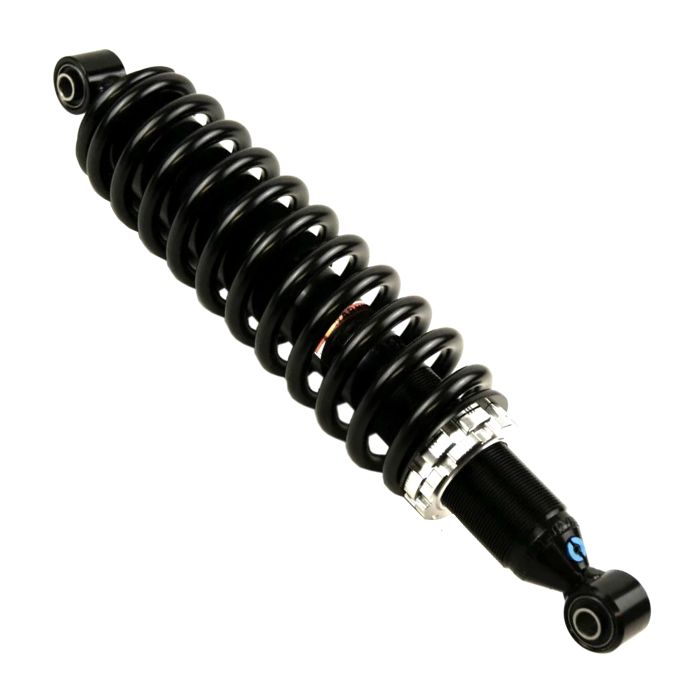

SHOCK FRONT/REAR HONDA SXS1000 PIONEER, BRONCO AU-04362, 52400-HL4-A51

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

FITMENT

• HONDA SXS1000 PIONEER (2016-2021)

SPECIFICATIONS

• Position Top Hole I.D (mm): 12
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 12
• Bottom Eyelet Width (mm): 36
• Tube O.D (mm): 45
• Stroke (mm): 155.6
• Spring O.D (mm): 90
• Spring Wire Diameter (mm): 12.5
• Spring Rate (lbs/inch): 274
• Spring Rate (kg/mm): 4.9
• Center to Center (mm): 504
• Center to Center (inches): 19 5/6
