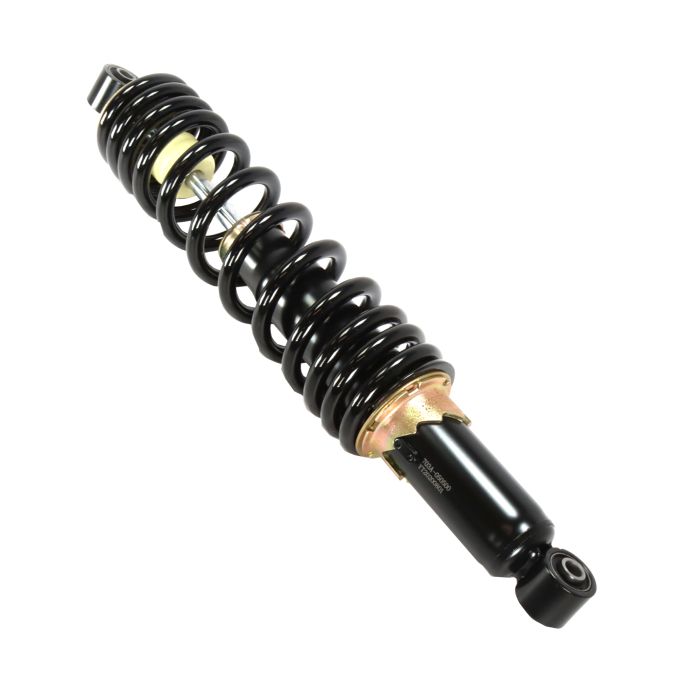

SHOCK FRONT CF MOTO UTV UFORCE, BRONCO AU-04371, 703A-050500

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

CF MOTO UTV FITMENT

• UFORCE 500 CF500UU (2016-2019)
• UFORCE 800 CF800-3 (2014-2019)
• UFORCE 800 UF800EX (2015-2016)

SPECIFICATIONS

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 32
• Tube O.D (mm): 44
• Stroke (mm): 119
• Spring O.D (mm): 82
• Spring Wire Diameter (mm): 12
• Spring Rate (lbs/inch): 258/431
• Spring Rate (kg/mm): 4.6/7.7
• Center to Center (mm): 452
• Center to Center (inches): 17 4/5
