SEA-DOO DRIVELINE SHAFT, WC-03304, 272000096, JET SKI, PWC DRIVE PARTS

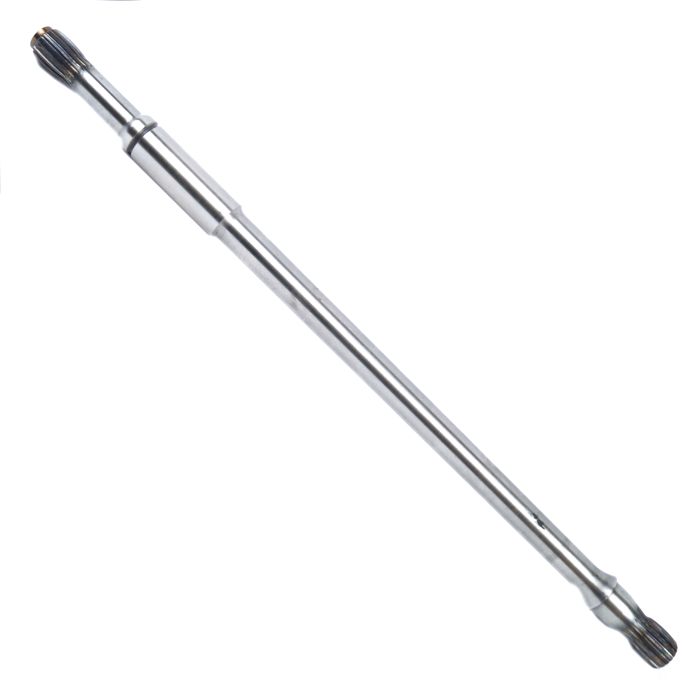

This drive shaft is designed for Sea-Doo personal watercraft powered by 720 (717) and 800 (787) engines across model years 1996–2005. It transfers drive from the engine crankshaft to the jet pump impeller and corresponds to OEM reference 272000096, with aftermarket reference WC-03304.

Features

• Threaded at one end and splined at the other for correct OEM-style coupling
• Designed to resist friction and fatigue at the threads and splines
• Built for marine environments to support reliable driveline performance

Specifications

• Application: Sea-Doo 720 / 800 (717 / 787) two-stroke models
• Year range: 1996–2005
• Overall length: 18 1/8 in (approx. 46 cm)
• End configuration: threaded PTO end / splined impeller end
• Aftermarket reference: Wave Werx WC-03304

Cross-Reference OEM Part Numbers

• 272000096

Vehicle Fitments

• Challenger 1800 (800) 1997–1999
• GS 720 1997–2001
• GSI 720 1997
• GSX 800 1996–1997
• GSX RFI 800 1999–2000
• GTI 720 2001–2005
• GTI LE 720 2002–2004
• GTI LE RFI 800 2003–2005
• GTI RFI 800 2004–2005
• GTS 720 2001
• Speedster 800 1998–1999
• SPX 800 1997–1999
