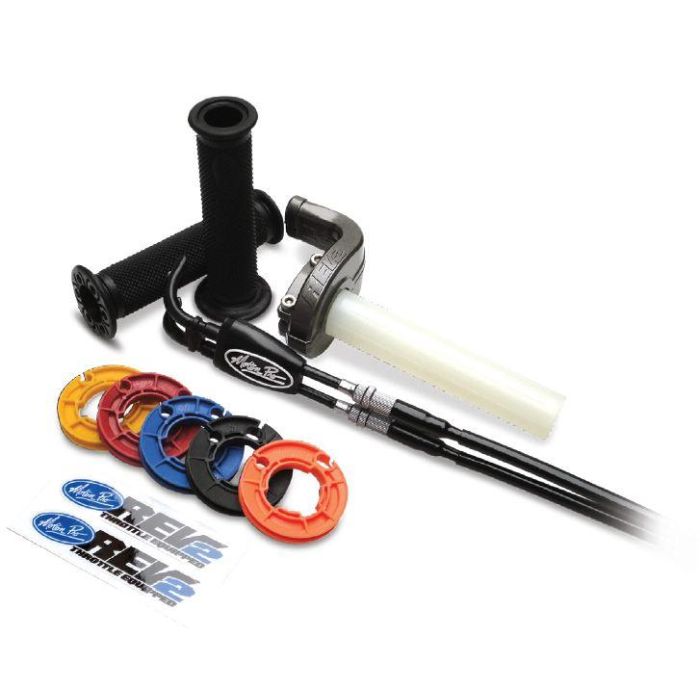

REVOLVER 2 THROTTLE KIT 2006-2007 YAMAHA YZF R6 MOTION PRO 01-2737

The second-generation Revolver 2 variable-rate throttle kit provides an ultra-compact throttle housing and an interchangeable reel system to tailor throttle response to rider preference and conditions. It is designed for straightforward installation with snap-together elbows and billet adjusters, with sealed cable boots and optimised cable housings for smooth, reliable operation and secure adjustment support.

Features

• Interchangeable reel system to tailor throttle rate to riding conditions and rider preference
• Ultra-compact housing with snap-together elbows for easy installation and reel changes
• Reduced handlebar space requirement for improved lever clearance and throttle position
• Smaller reels deliver a slower throttle rate; larger reels deliver a faster throttle rate
• Progressive cam reel included for a progressive throttle response
• Unique reel design enables rapid reel changes
• Cable boot keeps dirt and dust out for reliable, smooth operation

Specifications

• Billet aluminium inline cable adjusters for ease of installation and adjustment
• Lower cable section: 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
• Upper cable section: 6 mm housing to provide solid support of adjusters

Cross-Reference Numbers

• Motion Pro Revolver 2 Throttle Kit 01-2737

Vehicle Fitments

• Yamaha YZF-R6 600 cc 2006–2007
