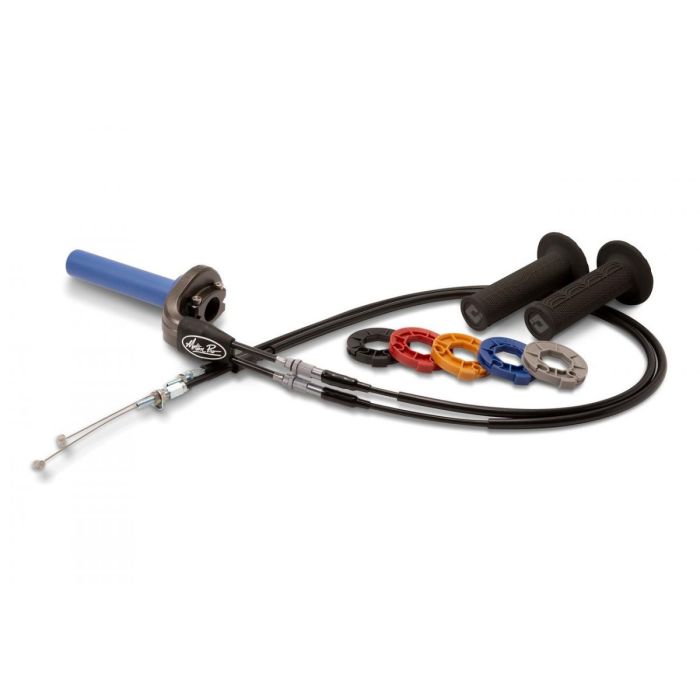

REV 3 THROTTLE KIT KAWASAKI KXF KLX MOTION PRO 01-2915

3rd-generation variable-rate throttle system with interchangeable reels, compact REV3™ housing, and dedicated cables and grips, allowing precise adjustment of throttle response to suit rider preference and conditions.

Features

• Innovative reel changing system to tailor throttle rate to preference and terrain
• Five reels provided: smaller reels for slower throttle rate; larger reels for faster throttle rate
• Progressive cam reel included for a smooth, progressive response
• Slim REV3™ throttle housing for improved lever clearance and position adjustment
• Improved throttle stop for greater strength and durability
• Snap-together elbows for easier installation and quicker reel changes
• Cable boot to keep dirt and dust out for smooth, reliable operation
• Compatible with Motion Pro DirtControl™ V2 Lock-On grips and ODI Lock-On grips
• Billet aluminium inline cable adjusters for straightforward installation and adjustment
• Lower cable section uses 5 mm housing with PTFE liner for reduced friction and increased routing flexibility
• Upper cable section uses 6 mm housing for solid adjuster support
• Simple to install and maintain
• Patented design

Specifications

• Reel options: four round reels (35 mm, 40 mm, 45 mm, 50 mm) plus progressive cam reel
• Throttle housing: slim REV3™ design with snap-together elbows
• Cable construction: lower 5 mm PTFE-lined housing; upper 6 mm housing
• Kit contents: REV3™ throttle assembly with throttle tube (off-road kits include Titan Throttle Tube™), black vinyl cables, and appropriate grips

Cross-Reference OEM Part Numbers

• 01-2915
• 01-2818
• 01-2819
• 01-1131

Vehicle Fitments

• Kawasaki KX250F (2006–2011)
• Kawasaki KLX450R (2008–2009)
• Kawasaki KX450F (2006–2008)
