REV 3 THROTTLE KIT 2016-2017 KAWASAKI KX450F MOTION PRO 01-2971

The 3rd generation REV3 variable-rate throttle system provides adjustable throttle control through interchangeable reels, a slim housing for improved lever clearance, and components engineered for strength, smooth operation, and straightforward installation. Designed as an off-road kit, it includes bike-specific cables and a durable throttle tube, with broad compatibility for modern lock-on grip systems.

Features

• Innovative reel changing system to tailor throttle rate to preference and conditions
• Five reel options enable slower (smaller reels) or faster (larger reels) throttle rates, plus a progressive cam reel
• Slim REV3 throttle housing for increased lever clearance and flexible positioning
• Improved throttle stop for greater strength and durability
• Snap-together elbows to simplify installation and reel changes
• Cable boot to keep out dirt and dust for reliable, smooth operation
• Compatible with DirtControl V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
• Billet aluminium inline cable adjusters to ease installation and adjustment
• Simple to install and maintain
• Patented

Specifications

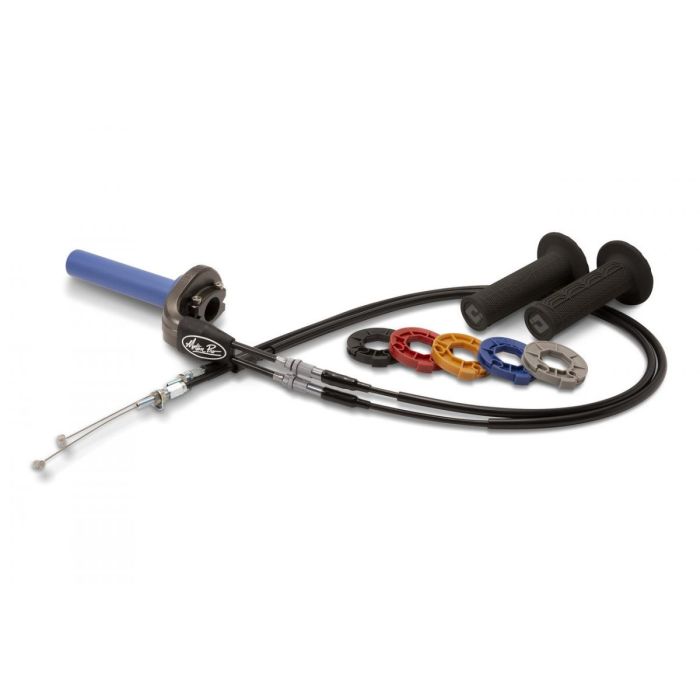

• Kit includes: REV3 throttle assembly with throttle tube; off-road kits include the unbreakable Titan Throttle Tube
• Cables: REV3 black vinyl cables specifically designed for the listed model
• Grips: REV3 sportbike kits include RoadControl grips (01-1131); REV3 off-road kits include DirtControl II grips (01-2818)
• Reels: four interchangeable round reels (35 mm, 40 mm, 45 mm, 50 mm) plus one progressive cam reel
• Progressive cam reel profile: off-road cam reel (grey) included in off-road kits; sportbike kits include road race profile (orange)
• Cable construction: lower section uses 5 mm housing with PTFE liner for reduced friction, improved routing flexibility, and lighter weight
• Cable construction: upper section uses 6 mm housing to provide solid support for adjusters

Vehicle Fitments

• Kawasaki KX450F: 2016–2017
