REV 3 THROTTLE KIT 2009-2015 APRILIA RSV4 MOTION PRO 01-2964

The 3rd generation Motion Pro REV3™ variable-rate throttle system for Aprilia RSV4 applications provides a compact throttle housing and an interchangeable reel system to tailor throttle response to riding preference and conditions. The kit supplies a throttle assembly, cables, multiple reels (including a progressive cam), and application-specific grips, with construction and routing details aimed at smooth operation, durability, and straightforward installation and maintenance.

Features

• Variable-rate system with innovative reel changing to tailor throttle response to preference and conditions
• Five-reel range enabling slower or faster throttle rates; progressive cam reel included for a preferred progressive response
• Slim REV3™ throttle housing for improved lever clearance and flexible housing positioning
• Improved throttle stop for increased strength and durability
• Snap-together elbows for easier installation and reel changes
• Cable boot to keep out dirt and dust for reliable, smooth operation
• Compatibility with DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
• Simple to install and maintain
• Patented design

Specifications

• Billet aluminium inline cable adjusters
• Lower cable section: 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lower weight
• Upper cable section: 6 mm housing to provide solid support of adjusters
• Four interchangeable round reels: 35 mm, 40 mm, 45 mm, 50 mm
• Progressive cam reel included
• Sportbike kits include road race profile cam reel (orange)
• Off-road kits include off-road profile cam reel (grey)

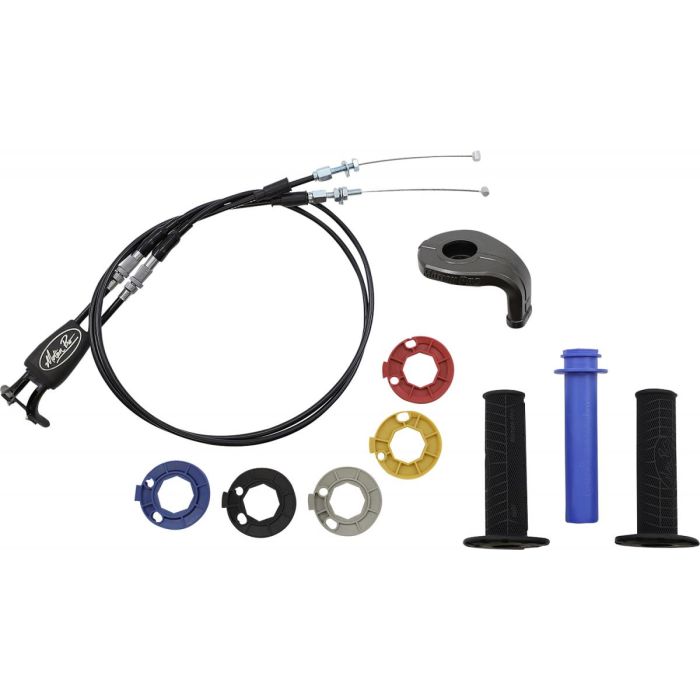

• Kit includes REV3™ throttle assembly with throttle tube (off-road kits include Titan Throttle Tube™)
• Motion Pro REV3™ black vinyl cables specifically designed for the bike
• Sportbike kits include Motion Pro RoadControl™ grips (01-1131)
• Off-road kits include Motion Pro DirtControl™ II grips (01-2816)

Vehicle Fitments

• Aprilia RSV4 2009–2015
• Aprilia RSV4-R 2010
• Aprilia RSV4-R APRC 2011–2015
