REV 2 THROTTLE KIT SUZUKI RMZ MOTION PRO 01-2721

Variable-rate off-road throttle kit using the Motion Pro Rev2 system, allowing throttle rotation to be tailored via interchangeable reels. Supplied with Titan throttle tube, model-specific black vinyl cables, Dirt Control grips, decal set, and printed instructions for dependable operation with the stock carburettor.

Features

• Innovative reel changing system to tailor throttle rate to riding conditions and rider preference
• Second-generation design; patent pending
• Ultra-compact housing with snap-together elbows for easy installation and rapid reel changes
• Requires less handlebar space than the Revolver throttle kit for improved lever and control clearance
• Smaller reels provide a slower throttle rate; larger reels provide a faster throttle rate
• Progressive cam reel delivers a sensitive initial response with shorter twist to full throttle
• Cable boot keeps dirt and dust out for smooth, reliable operation
• Billet aluminium in-line cable adjusters ease installation and adjustment
• Lower cable section uses 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight
• Upper cable section uses 6 mm housing for solid support of adjusters
• Includes Motion Pro Titan throttle tube and Dirt Control grips
• Simple to install and maintain

Specifications

• Throttle system: Rev2 variable-rate, off-road
• Reels included: 35 mm, 40 mm, 45 mm, 50 mm, plus grey progressive cam reel

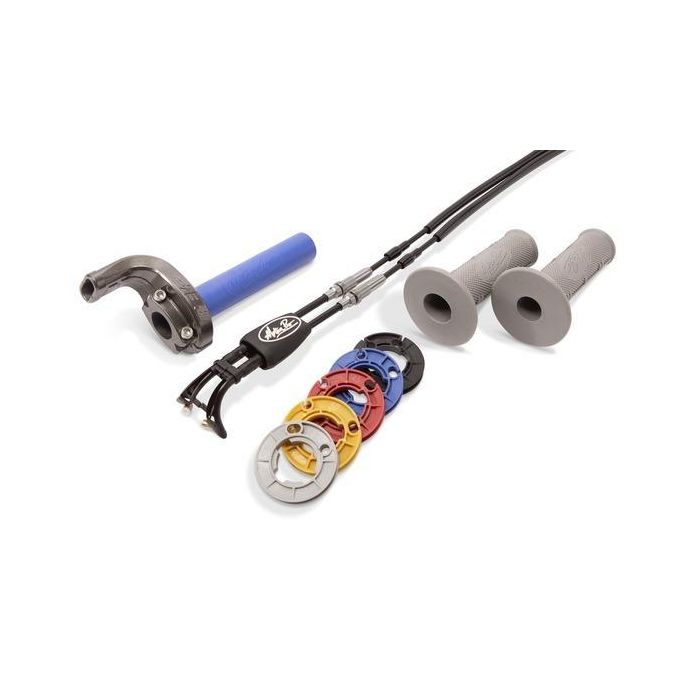

• Kit contents: Rev2 throttle assembly with Titan throttle tube, model-specific black vinyl cables, Dirt Control grips, decal set, printed instructions
• Compatibility: stock carburettor

Cross-Reference OEM Part Numbers

• 01-2721 (Rev2 Offroad Throttle Kit)
• 01-1089 (Revolver VR kit component reference)
• 01-1104 (Revolver VR kit component reference)

Vehicle Fitments

• Suzuki RM-Z250 2008–2014
• Suzuki RM-Z450 2008–2012
• Suzuki RMX450Z 2010–2011
• Suzuki RM-Z250 2008–2017
