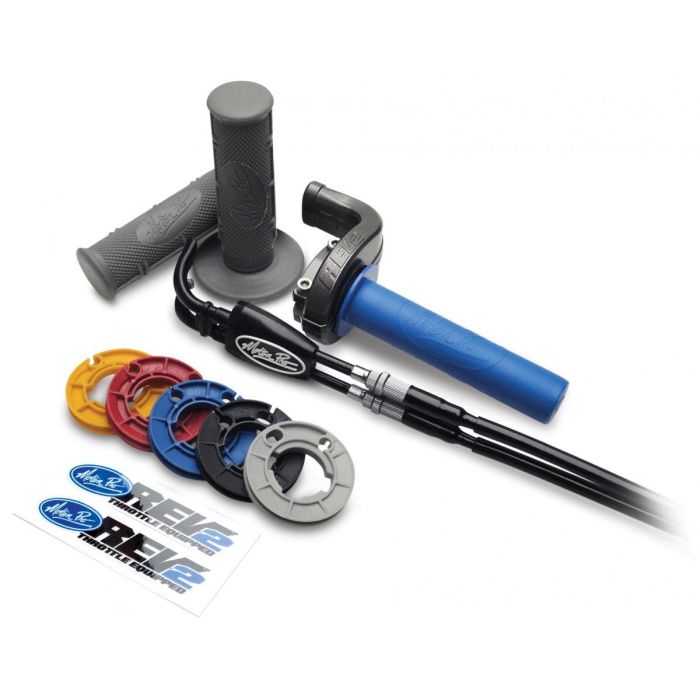

REV 2 THROTTLE KIT KTM MOTION PRO 01-2724

A second-generation, variable-rate off-road throttle system designed to reduce required twist, provide progressive control, and streamline installation and maintenance. The ultra-compact housing and snap-together elbows conserve handlebar space while enabling rapid reel swaps, with cable construction focused on smooth operation and durability.

Features

• Adjusts how much twist is required to reach full throttle via interchangeable reels
• Each reel changes twist by approximately 10 degrees: if stock is 90° with a 40 mm reel, the 45 mm reel reduces to ~80°, the 50 mm reel to ~70°, and the 35 mm reel increases to ~100°
• Progressive-profile cam reel delivers sensitive, longer-twist control at small openings and shorter, more direct twist at larger openings
• Second-generation throttle system with patent-pending design
• Innovative reel changing system to tailor throttle rate to riding conditions and rider preference
• Ultra-compact reel housing with snap-together elbows for quick installation and reel changes
• Requires less handlebar space than the Revolver throttle kit for added lever and control clearance
• Use smaller reels for slower throttle rate and larger reels for faster throttle rate
• Unique reel design enables fast reel changes
• Cable boot helps keep dirt and dust out for reliable, smooth operation
• Billet aluminium in-line cable adjusters for ease of installation and adjustment
• Lower cable section uses 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
• Upper cable section uses 6 mm housing to provide solid support for adjusters

Specifications

• Model: REV2 Offroad Throttle Kit
• Carburettor type: Stock
• Throttle assembly: Rev2 with Titan throttle tube
• Cables: Black vinyl, specifically designed for the listed applications
• Reels included: 35 mm, 40 mm, 45 mm, 50 mm, plus grey progressive cam reel
• Grips included: Motion Pro Dirt Control grips
• Accessories: Rev2 throttle equipped decal set; printed colour instructions

Cross-Reference Numbers

• 01-2724 (Motion Pro Rev2 / Revolver 2 Throttle Kit)

Vehicle Fitments

• Husaberg FE 450: 2005–2008
• Husaberg FE 550: 2005–2008
• Husaberg FE 650 e: 2005–2008
• Husaberg FS 450 c: 2005–2008
• Husaberg FS 450 e: 2005–2008
• Husaberg FS 450 s: 2005–2008
• Husaberg FS 650 c: 2005–2008
• Husaberg FS 650 e: 2005–2008
• KTM 250 EXC-G / EXC-G Racing: 2002–2005
• KTM 400 EXC-G / EXC-G Racing: 2004–2007
• KTM 450 EXC-G / EXC-G Racing: 2003–2006
• KTM 450 MXC-G / MXC-G Racing: 2003–2005
• KTM 450 SMR: 2004–2007
• KTM 450 SX: 2003–2006
• KTM 450 SX Racing: 2003–2006
• KTM 450 SX-F: 2003–2006
• KTM 450 SX-F Racing 4-Stroke: 2003–2006
• KTM 450 XC: 2006–2007
• KTM 450 XC-F: 2006–2007
• KTM 450 XC-W: 2007–2008
• KTM 450 SMC: 2004
• KTM 525 EXC-G Racing: 2003, 2005–2006
• KTM 525 EXC: 2007
• KTM 525 MXC-G Racing: 2003–2005
• KTM 525 SMC: 2004
• KTM 525 SX: 2003–2006
• KTM 525 SX Racing: 2003–2006
• KTM 525 XC: 2007
• KTM 525 XC-W: 2007
• KTM 625 SMC: 2003–2004
• KTM 625 SXC: 2003–2004
• KTM 660 Rally: 2007
• KTM 690 Rally Factory Replica: 2008–2009
