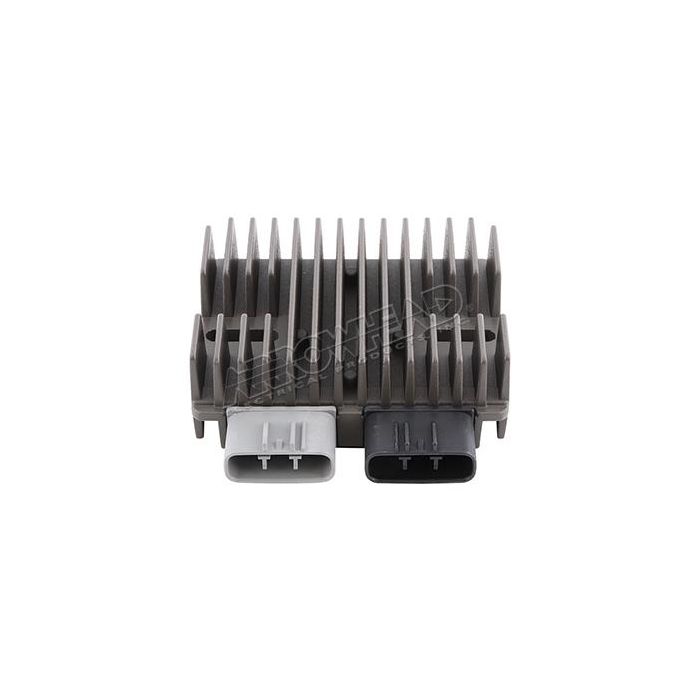

REGULATOR / RECTIFIER SEA-DOO PWC, ARROWHEAD ASD6014, 230-22227

This 12-volt regulator/rectifier is a high-quality upgrade designed for 5-pin SCR type systems (series or shunt). It features a robust 50A maximum regulated current capacity and is engineered to handle increased power loads. The design offers superior performance compared to standard models like the SH775AA, with improved thermal management and current-handling capabilities. It maintains compatibility with stock mounting locations for a straightforward replacement. Manufactured by Shindengen, this unit meets or exceeds OEM specifications, ensuring reliability and durability.

Features:

• Special 50A SCR (Series or Shunt) design diodes.
• Larger mold size for enhanced durability compared to standard SH775AA models.
• Handles increased power loads with ease.
• Fully factory tested for reliability.
• Direct OEM replacement with stock mounting compatibility.
• Matches original equipment in appearance and performance.

Specifications:

• Voltage: 12V
• Dimensions: 110mm L x 85mm W x 40mm T
• Plug 1: 3-pin (All Charging Coil)
• Plug 2: 2-pin (Inside Pin B+, Outside Pin Ground)
• Maximum Regulated Current: 50A
• Manufacturer: Shindengen

Additional Information:

SH847AA specifications:

• 40°C ambient temperature: 22A capacity
• Maximum current: 50A under case temperature of 110°C

SH775AA specifications for comparison:

• 40°C ambient temperature: 16A capacity
• Maximum current: 35A under case temperature of 110°C

Cross-Reference OEM Part Numbers:

• 230-22227 – Arrowhead
• 230-22227 – J & N
• ASD6014 – Arrowhead (Old)
• SH847AA – Shindengen

Part Number: ASD6014
