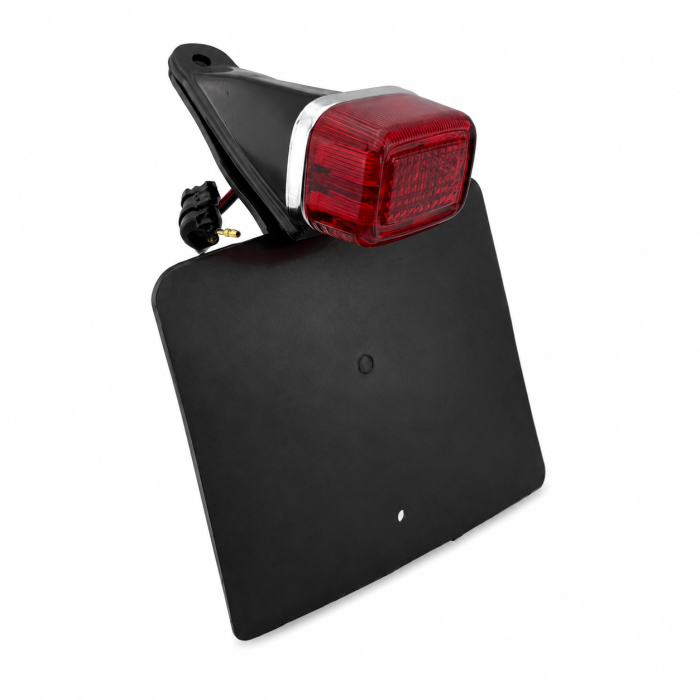

REAR STOP TAIL LIGHT WITH MUD FLAP NUMBER PLATE HOLDER YAMAHA UNIVERSAL FITTING

This Factory Image Racing universal Yamaha-style rear light assembly combines a rear stop and tail light with a mudflap number plate holder for trials, trail, enduro and off-road motorcycles. It is a replica-style tail light unit based on the type fitted as standard equipment to selected Yamaha TY, DT, IT and TT models, and can also be fitted to other suitable off-road motorcycles where a universal rear light and plate mounting assembly is required.

Features

• Rear stop and tail light assembly with integrated mudflap number plate holder
• Yamaha TY-style rear light fitting
• Pre-wired for straightforward installation
• Includes mounting bracket and wiring
• Suitable for Yamaha trail, trials and enduro off-road motorcycles
• Universal fitment option for other suitable off-road motorcycles

Specifications

• Supplied bulb: 6 V stop and tail bulb
• Compatible bulb options: 6 V or 12 V stop and tail bulbs
• 12 V bulb available on request
• Bulb type: BAY15D double-filament type
• Bulb rating: 21/3 W where supplied in 6 V form
• Overall length: 138 mm
• Lamp height: 50 mm
• Lamp width: 68 mm
• Mounting stud centres: 48 mm
• Number plate mounting: rubber mudflap type

Cross-Reference OEM Part Numbers

• FIR
• Factory Image Racing
• 434-84500-64-00

Vehicle Fitments

• Yamaha TY125
• Yamaha TY175
• Yamaha TY250
• Yamaha TY250R
• Yamaha TY250S
• Yamaha TY350
• Yamaha DT250
• Yamaha DT175
• Yamaha IT125
• Yamaha IT175
• Yamaha IT200
• Yamaha IT250
• Yamaha IT400
• Yamaha IT425
• Yamaha IT465
• Yamaha TT500
• Yamaha TT600
