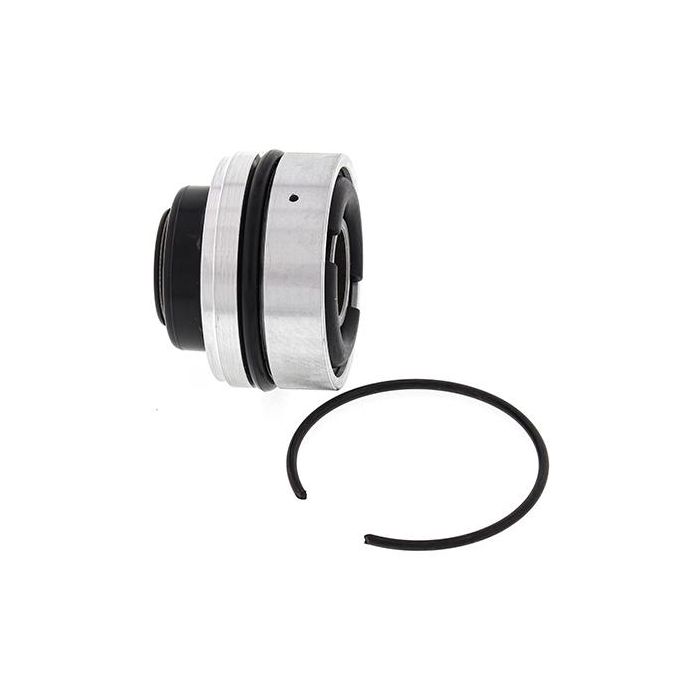

REAR SHOCK SEAL BLOCK 16.0x44, ALLBALLS 37-1003 KX125 250 500

SKU

29-652.A

Retail Price £46.38 £38.65 Trade Only: Please login or Click here to find a dealer

Out of stock

PRODUCT INFORMATION

Complete assemblies, ready to install into the shock body
Made from 6061-T6 aluminum and the same custom elastomer as Moose Racings fork seals
All have air bleed holes to help remove air from the oil reservoir during installation
Double-lip oil seal design keeps out dirt and keeps friction low
Some models have updated designs for easier installation
Kits include aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper
Made in the U.S.A.

***DIMENSIONS

Inside Diameter:

Outside Diameter:

Snap Ring:

Kawasaki
KX125 1988-1992,
KX250 1988-1992,
KX500 1988-1993

Part No. 29-652.A (oro2u.com)

Kawasaki KX125 1988-1992,
Kawasaki KX250 1988-1992,
Kawasaki KX500 1988-1993,
Rear Shock Seal Head Kit ALLBALLS 37-1003,

Size. Rod 16.00mm x OD. 44mm x Lenght 36.50mm / L1 = 15mm / L2 = 21.5mm,
Snap ring 44mm x 2mm round.
